Description

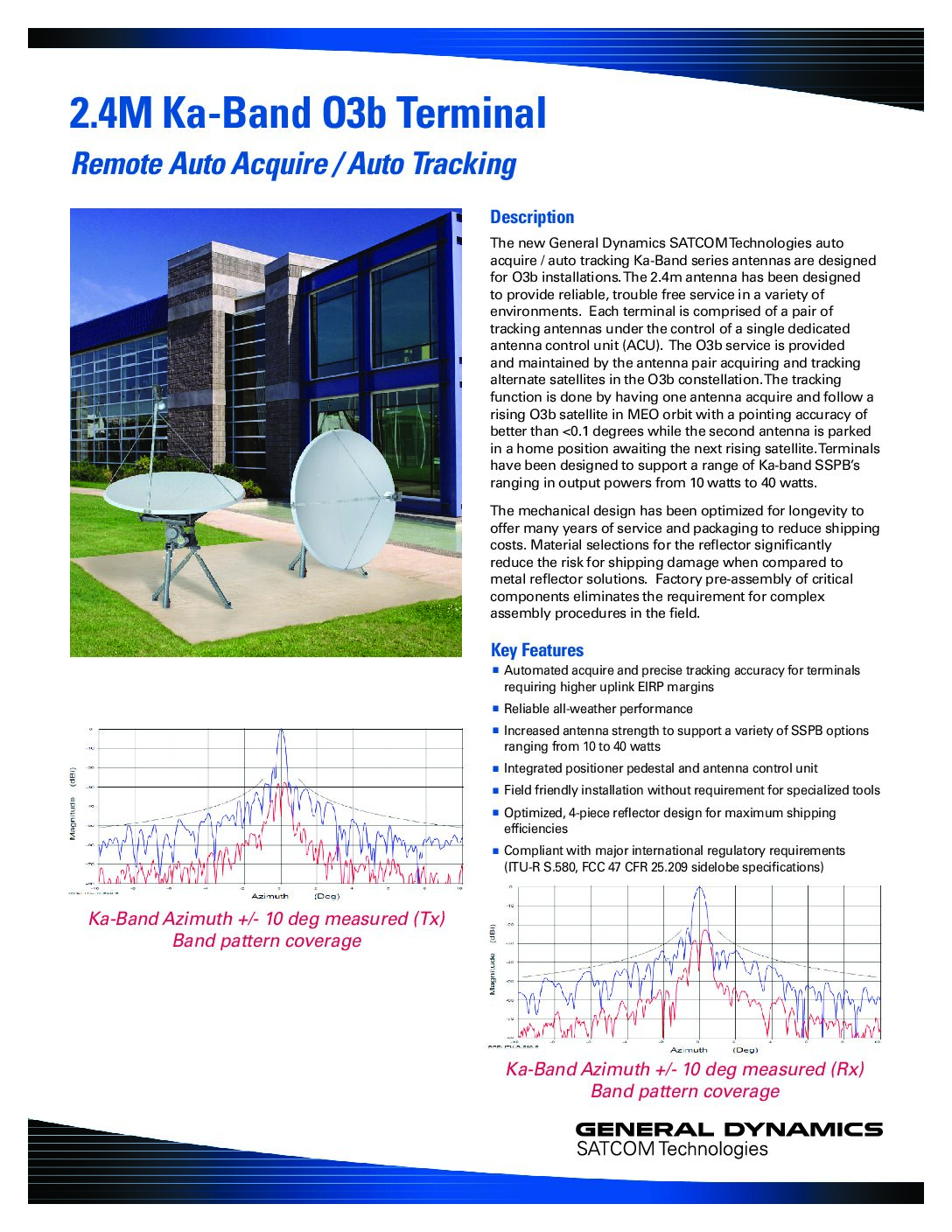

2.4M Ka-Band O3b Motorized Tracking Terminal
Our 2.4-meter Ka-Band O3b terminal is a high-performance, motorized satellite antenna system designed specifically for SES O3b MEO constellation connectivity. Engineered for demanding environments, this terminal ensures reliable, low-latency broadband communication for mission-critical applications.
Key Features:
-
Antenna Size: 2.4 meters, precision-engineered for Ka-Band operation
-
Frequency Range: Optimized for O3b (28.15–29.15 GHz Tx / 17.8–20.2 GHz Rx)
-
Motorized Tracking System: Ensures continuous, accurate satellite acquisition and tracking
-
Rugged Design: Built to withstand harsh weather and remote field conditions
-
Ideal For: Government, military, maritime, disaster recovery, and enterprise networks
Optional integration available with CPI 40W Ka-Band BUCs for a complete transmission solution
We have two brand new O3B 2.4M Ka-Band antennas available — motorized with tracking systems. Also in stock: two unused, like-new CPI 40W Ka-Band BUCs.

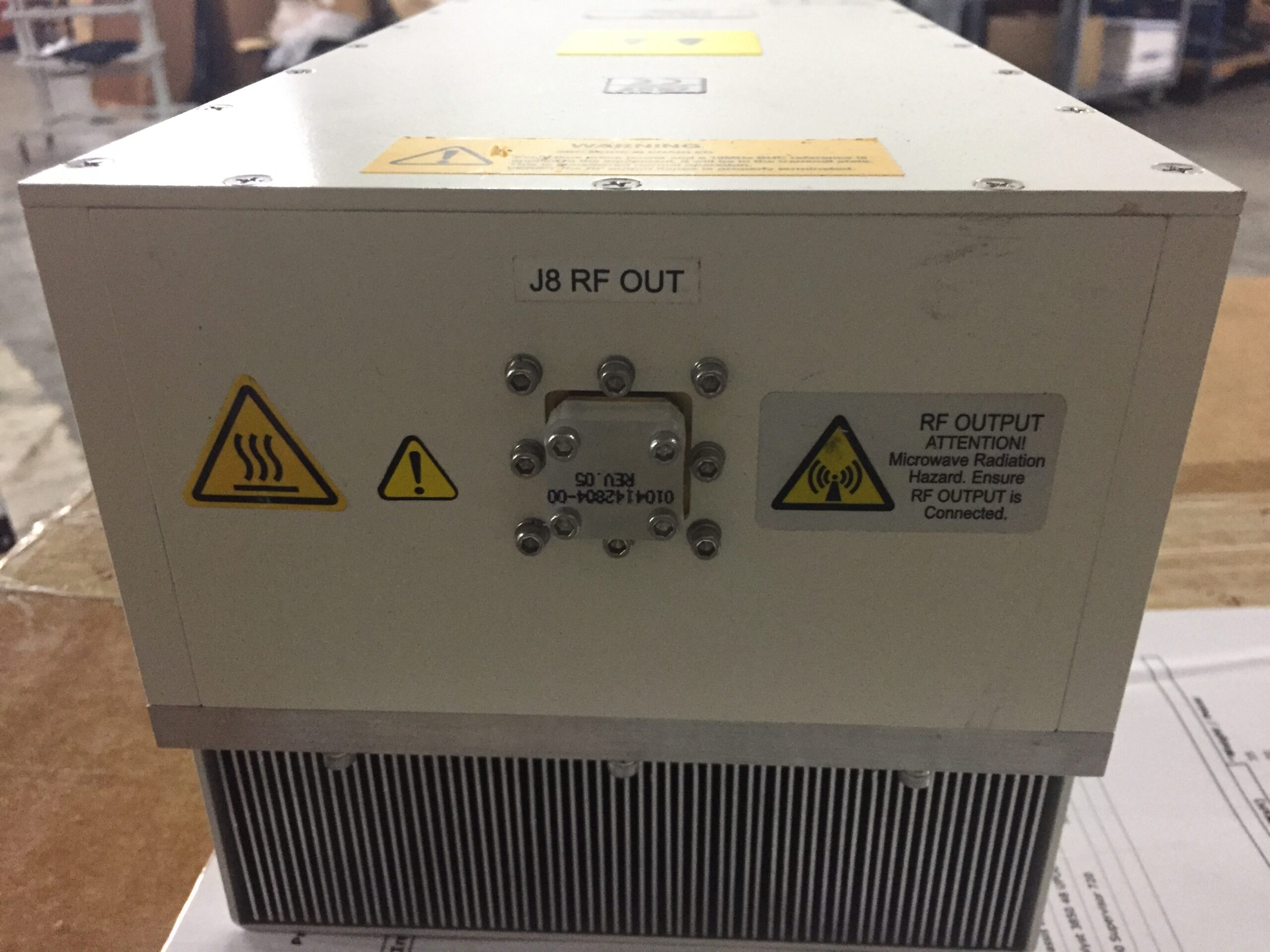

The attached BUC (Model: B3KO-A) has the following configuration code: EB0NJ0S0A0AA
Frequency: 28.15–29.15 GHz, 40W Psat.
