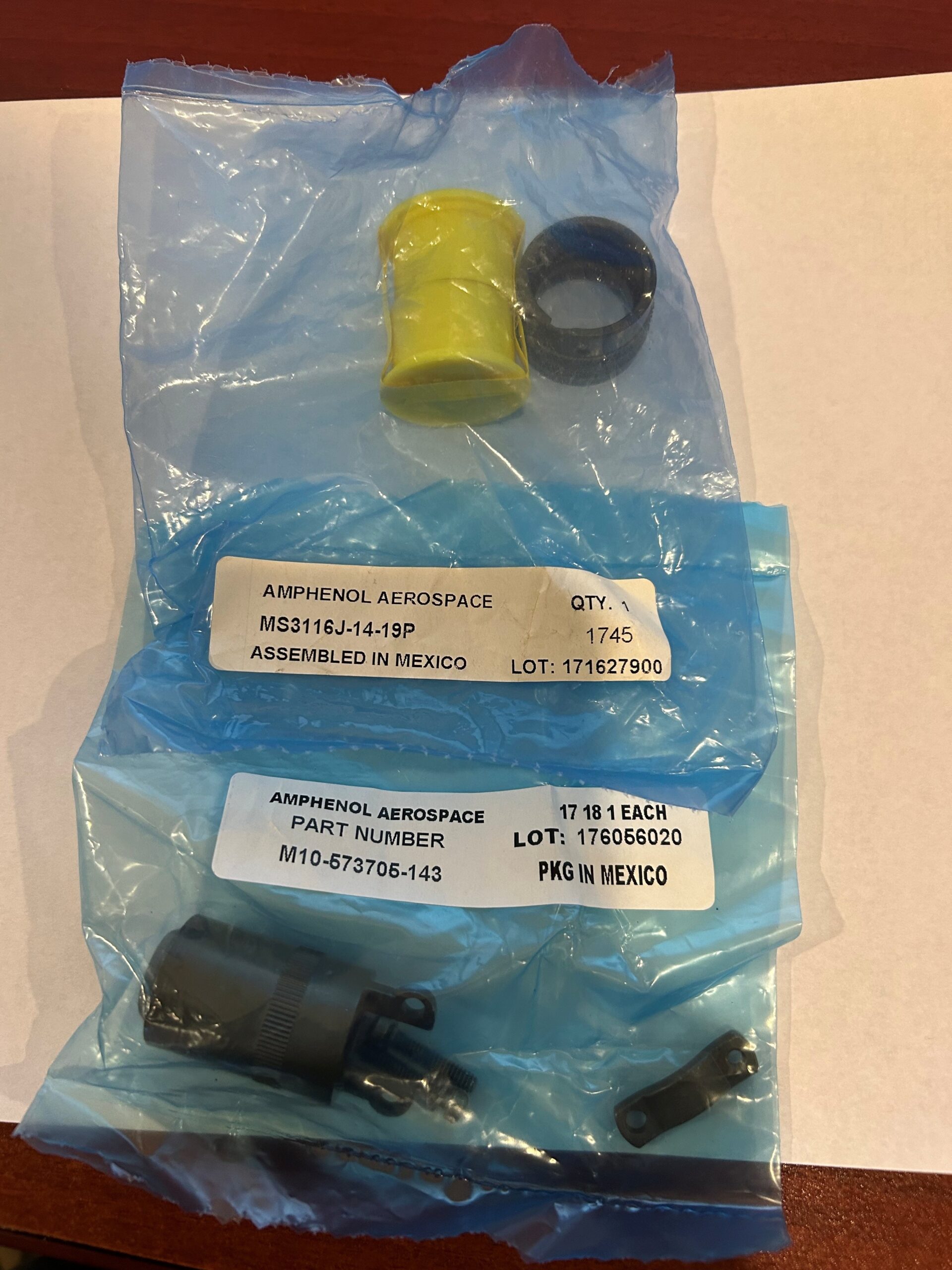

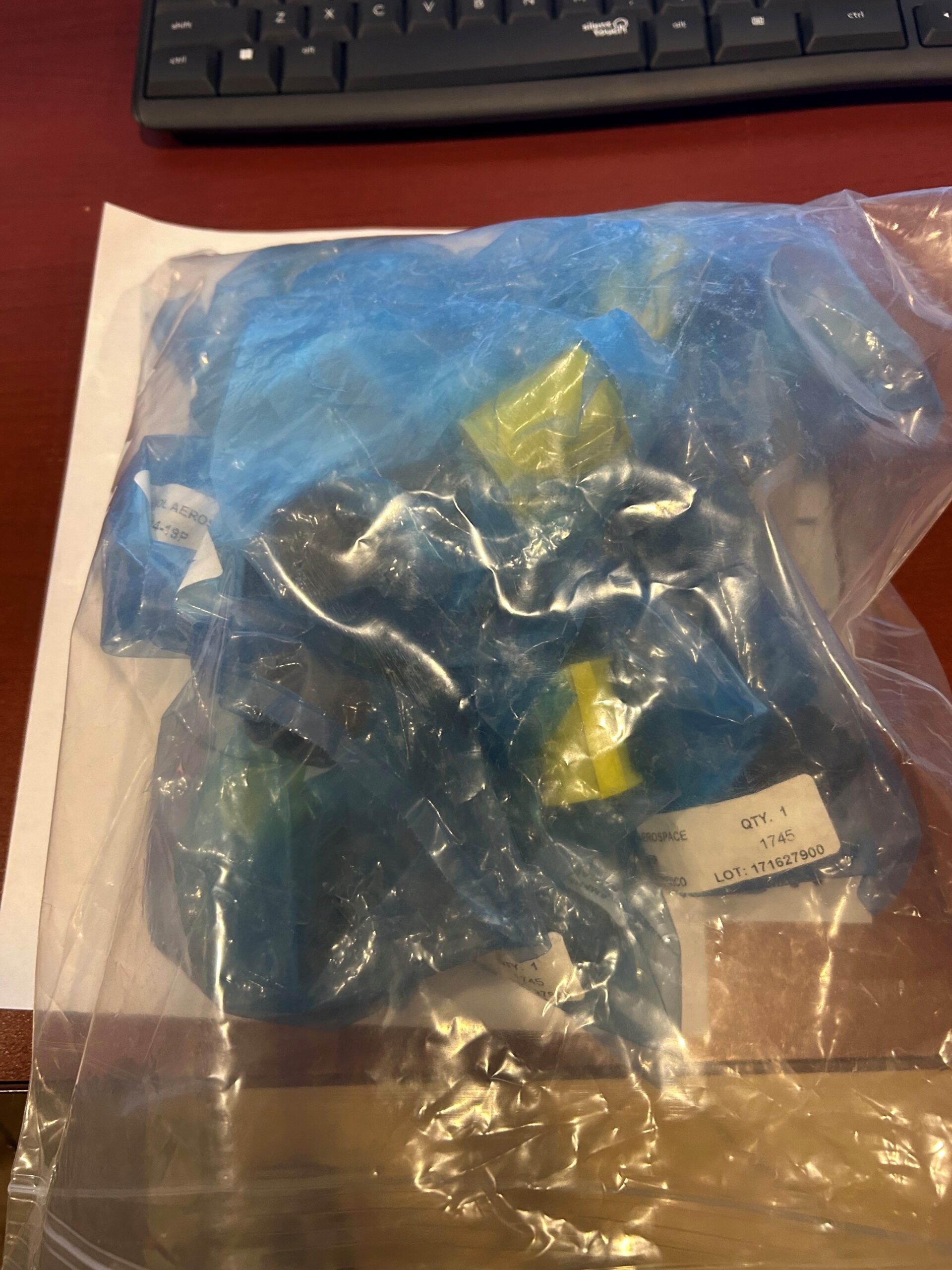

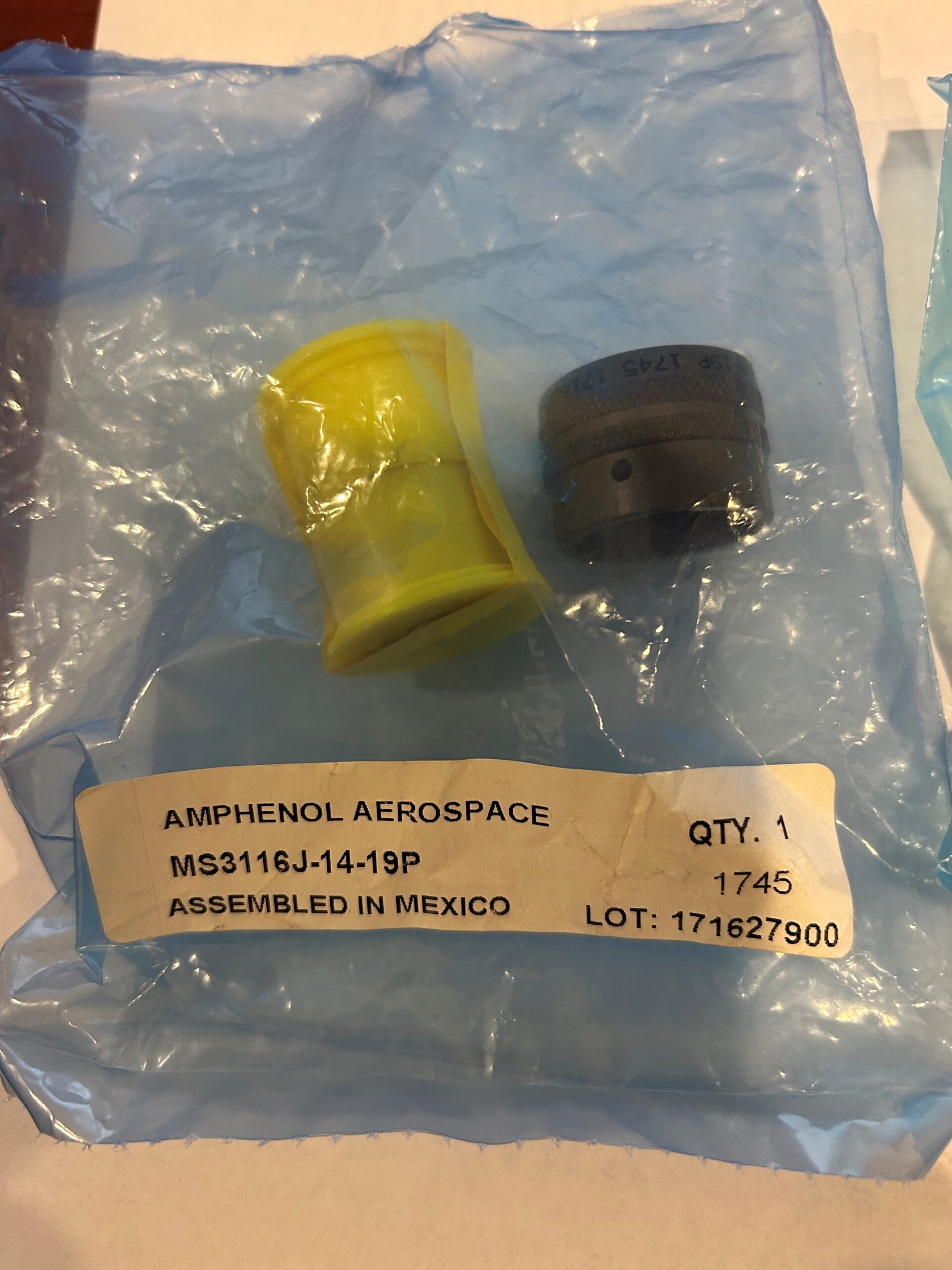

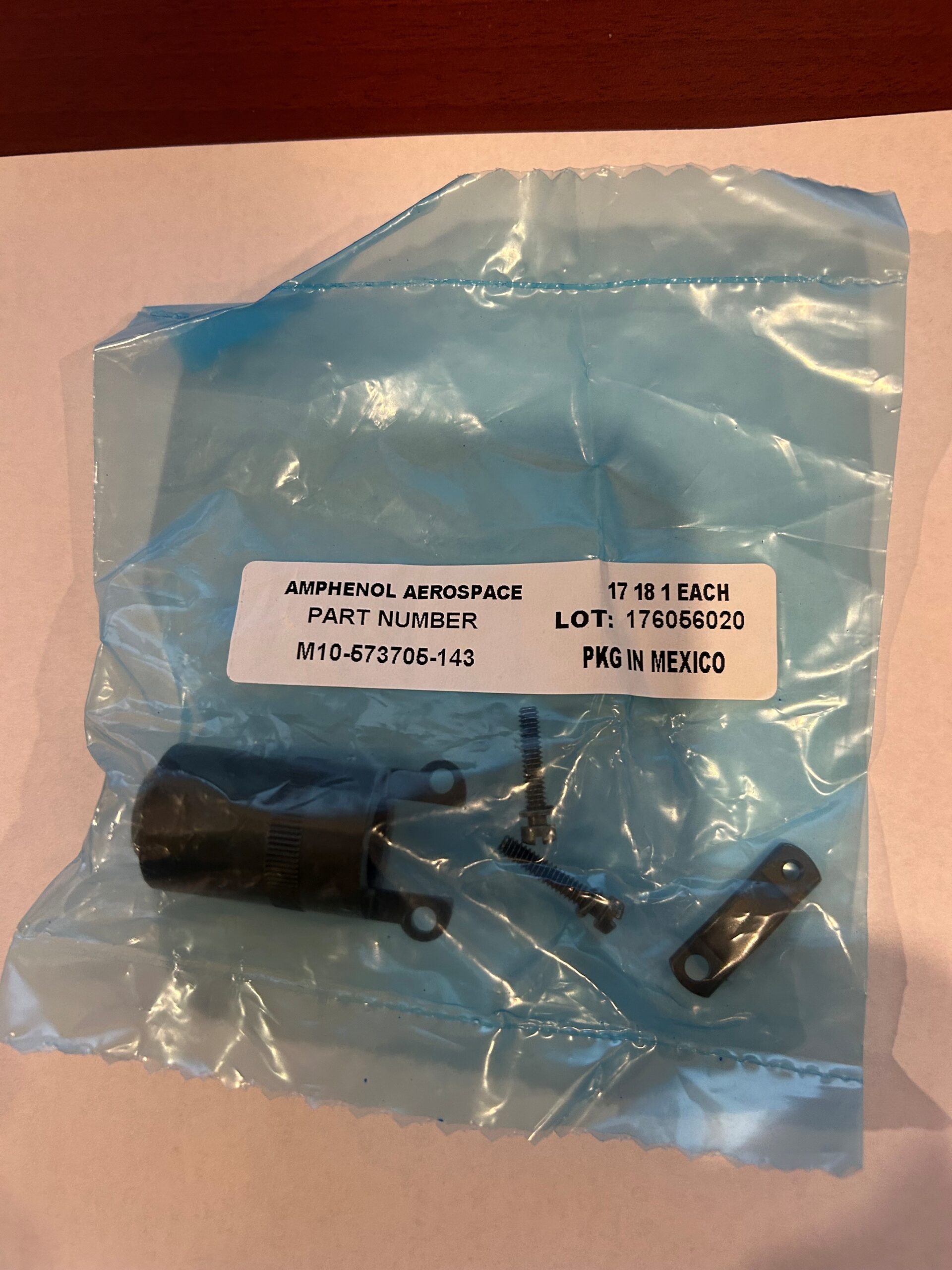

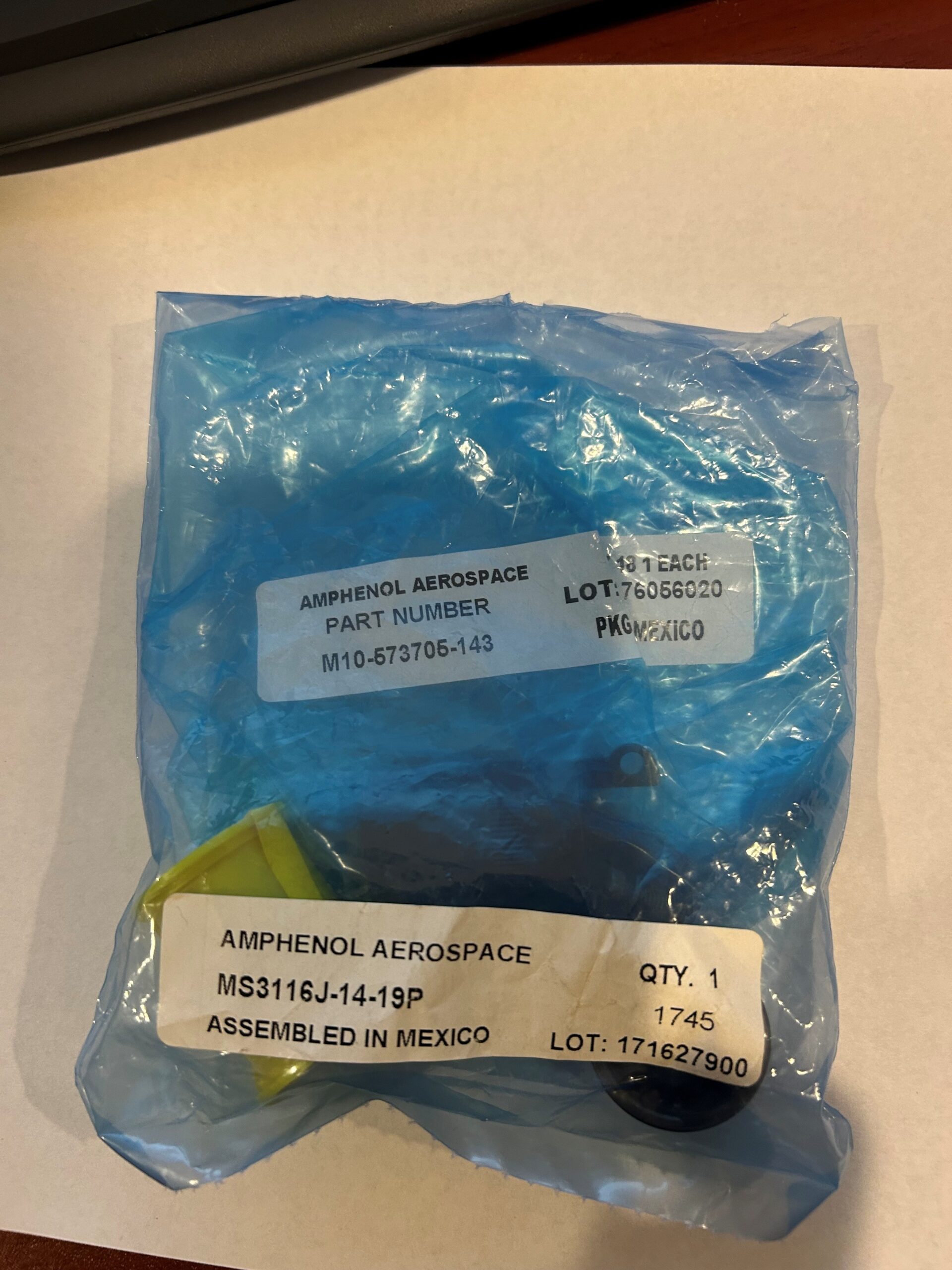

Amphenol MS3116J14-19P Circular Connector

The Amphenol MS3116J14-19P is a circular MIL-DTL-26482 Series I connector designed for reliability in demanding environments. It features 19 gold-plated solder pin contacts in a 14-19 insert configuration, housed in a durable aluminum shell with olive drab chromate over cadmium plating. This environmentally sealed straight plug uses a bayonet coupling mechanism for quick, secure connections.

🔧 Technical Specifications

• Contact Type: 19-position, size 20, solder pin contacts

• Shell Material: Aluminum with olive drab chromate over cadmium finish

• Coupling Mechanism: Bayonet

• Mounting Style: Free-hanging (in-line)

• Operating Temperature Range: -55°C to +125°C

• Service Class: J (environmentally sealed with cable gland seal)

• Voltage Rating: 600 V

• Current Rating: 7.5 A
