Description

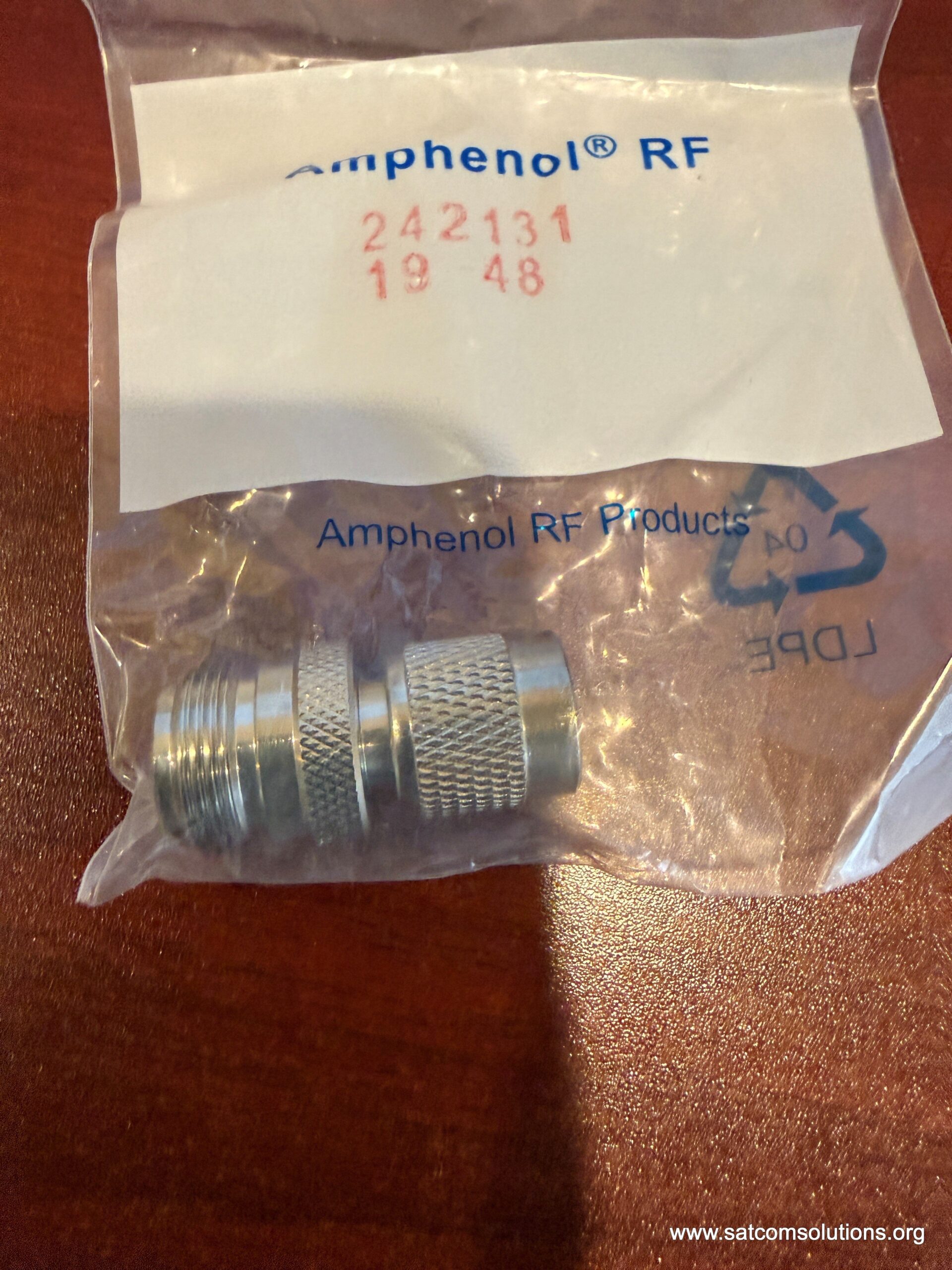

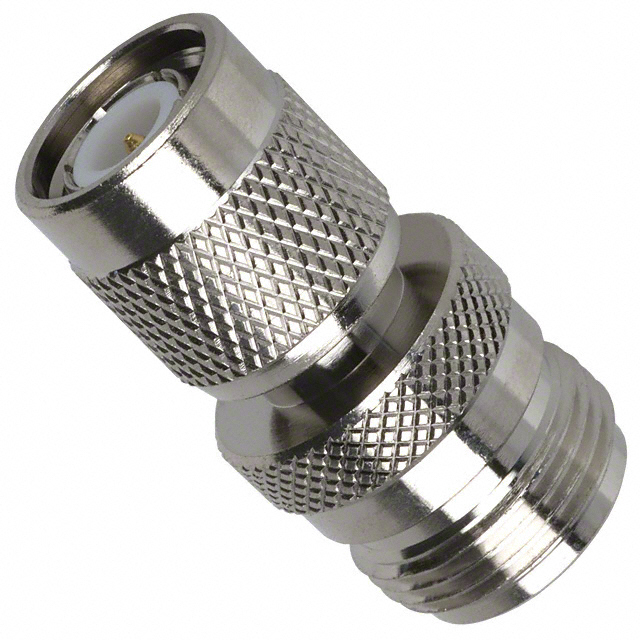

The Amphenol RF 242131 is a professional-grade 50-ohm RF coaxial adapter designed to connect equipment or cables with different RF interfaces.

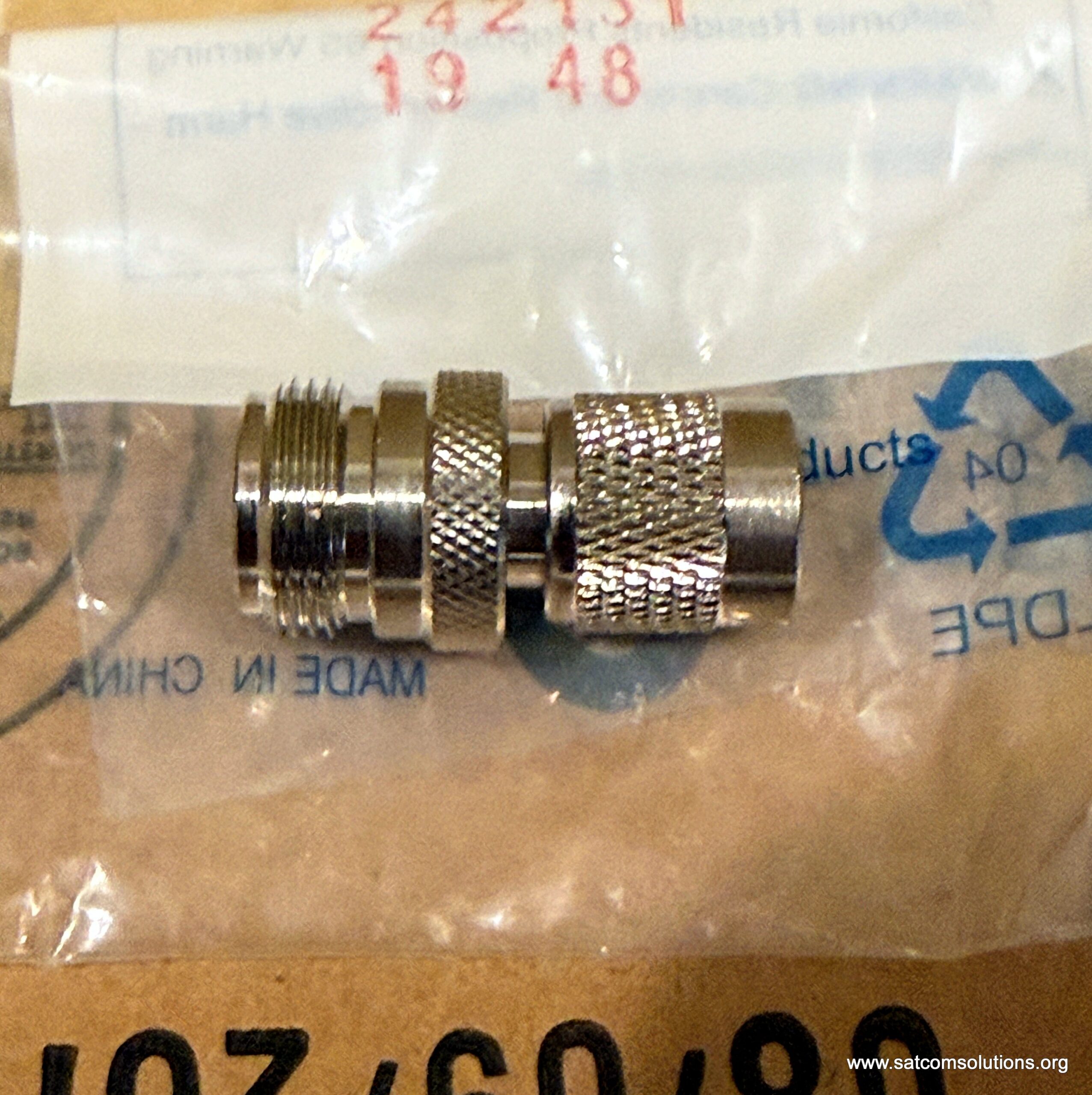

This straight adapter features a TNC Plug with Male Pin on one end and an N Jack with Female Socket on the other. The 242131 is designed for reliable RF connections and operates at frequencies up to 11 GHz, making it suitable for a wide range of RF, microwave, wireless, and SATCOM applications.
Features
- Manufacturer: Amphenol RF
- Part Number: 242131
- Amphenol Drawing: NF-TM-NT3G-50

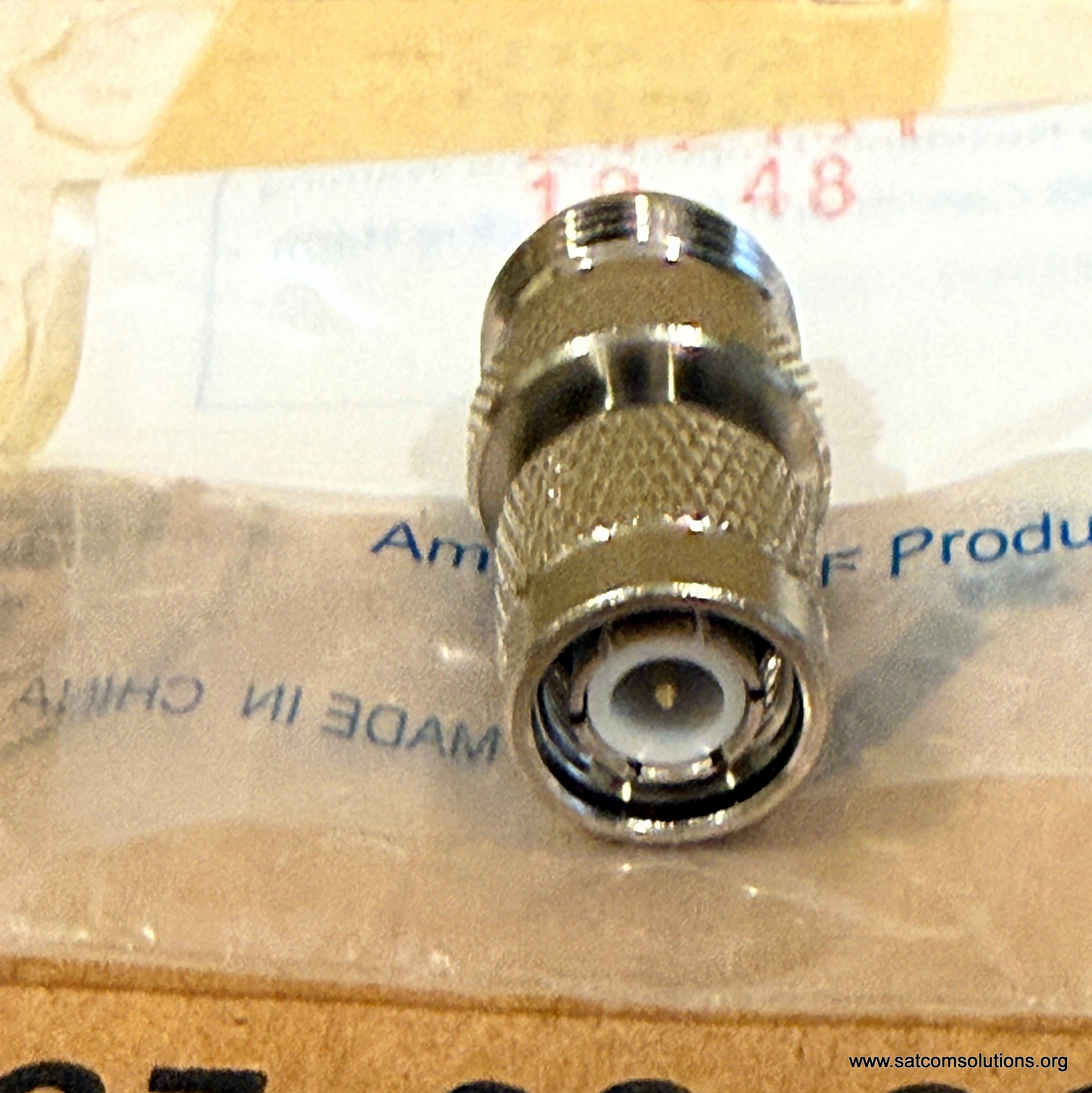

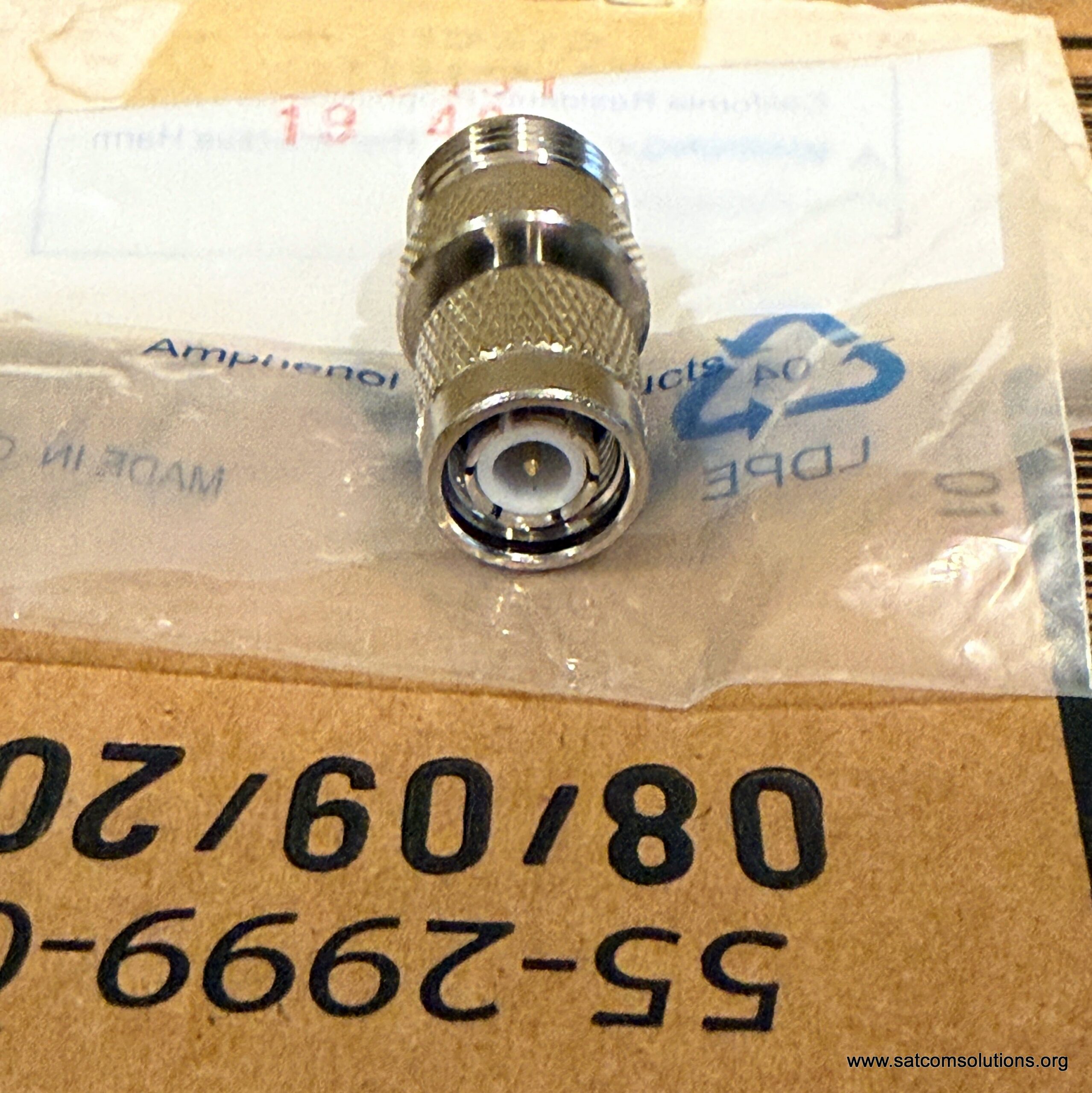

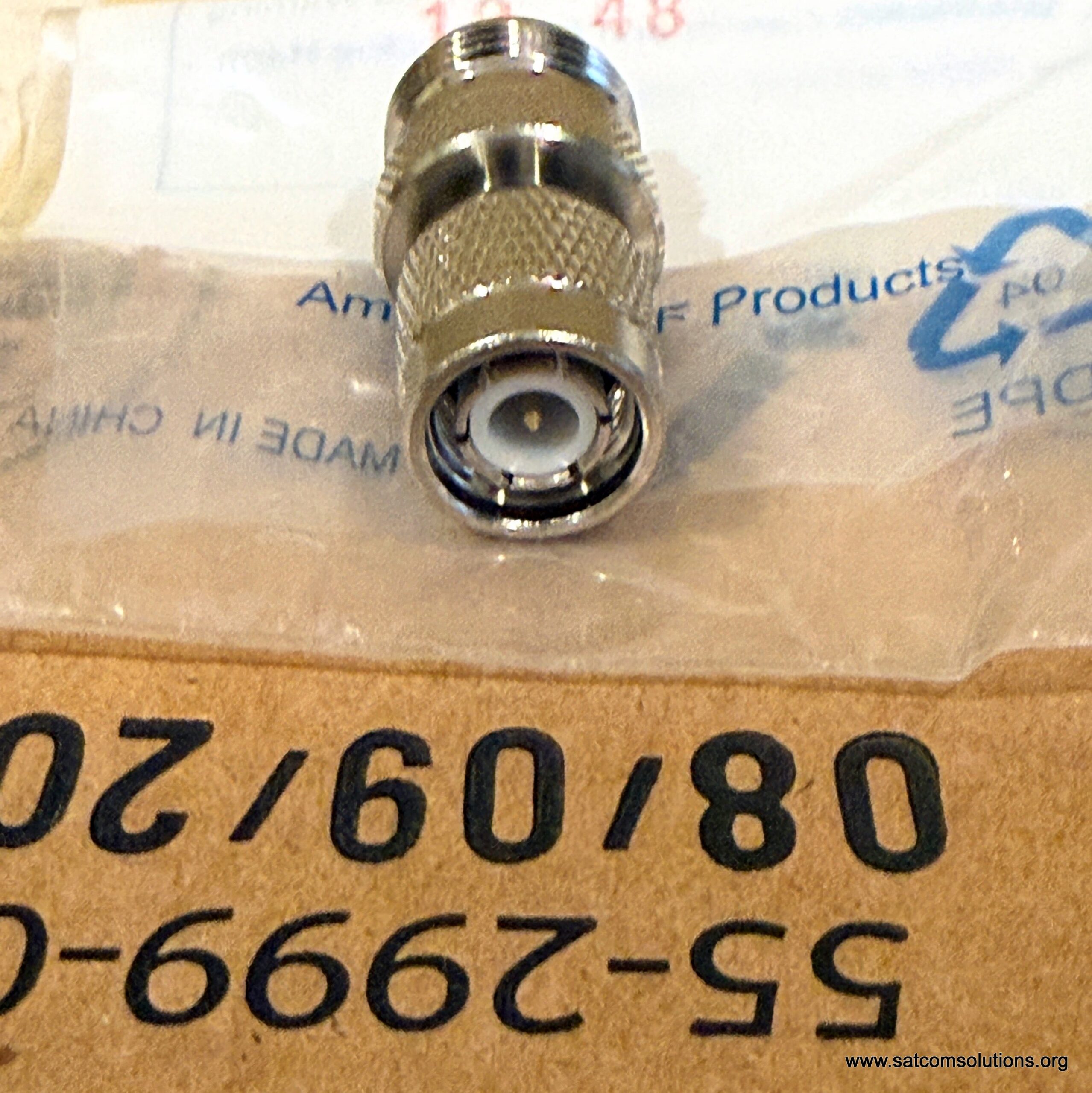

- Connector 1: TNC Plug / Male Pin

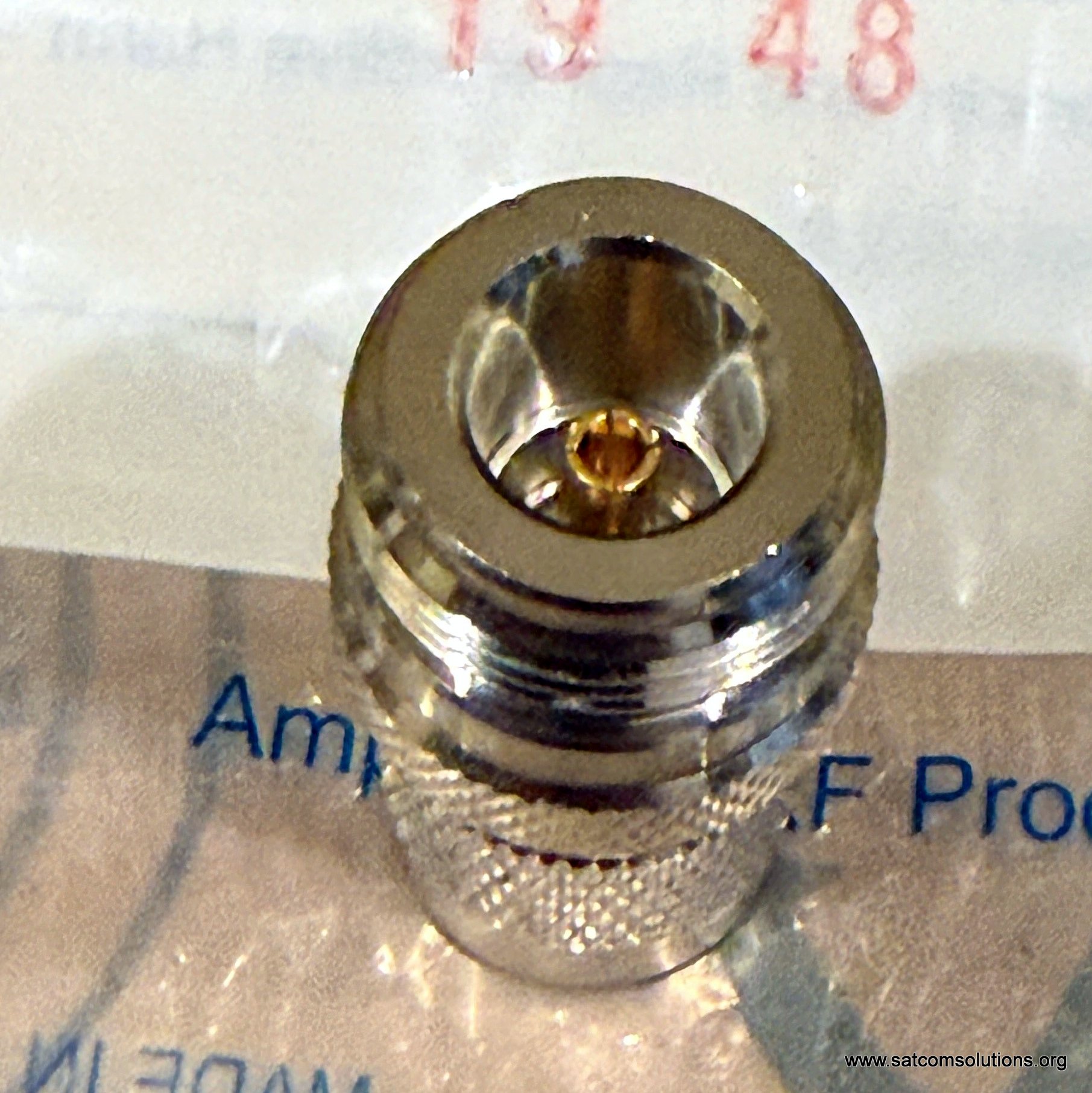

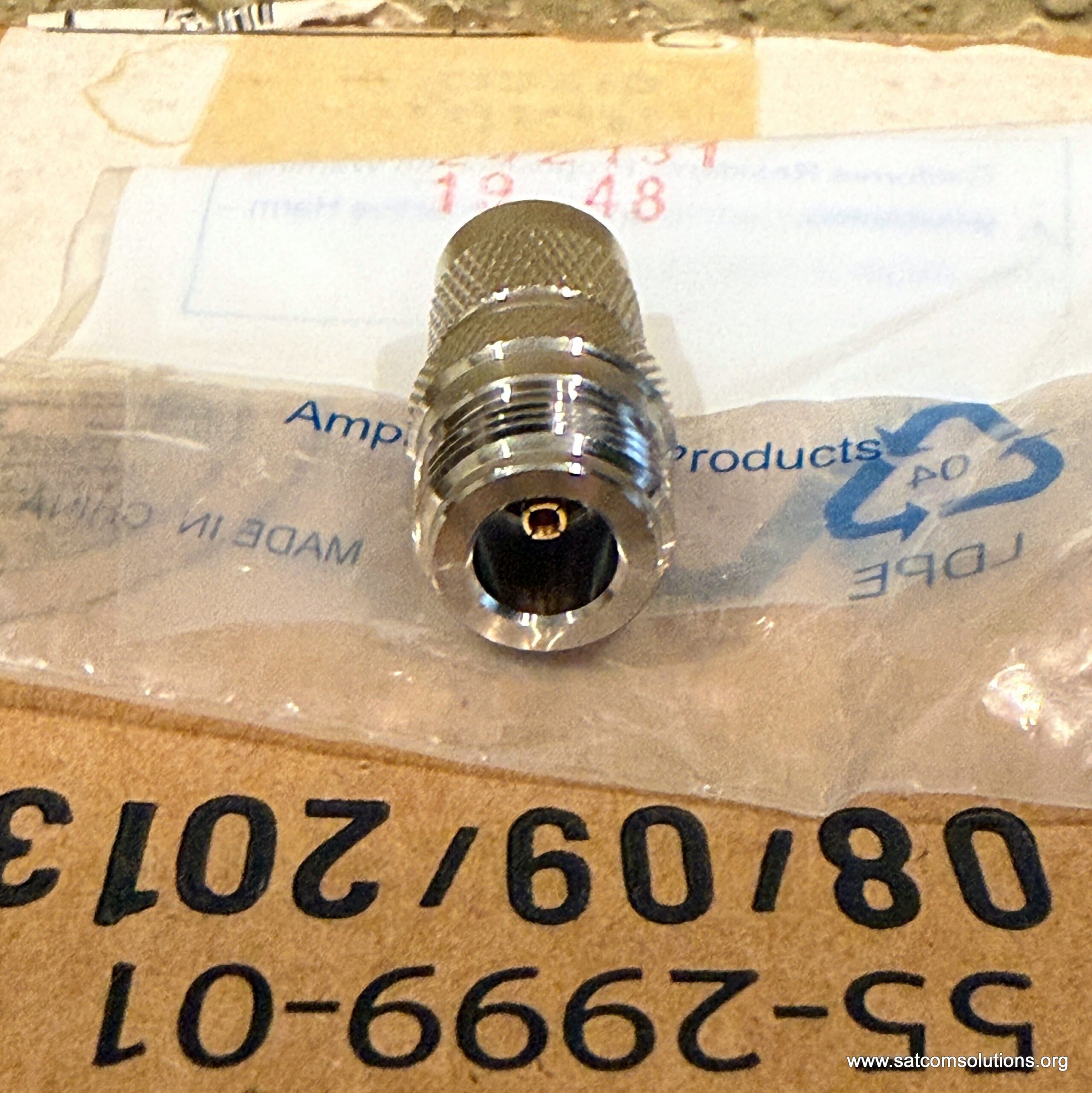

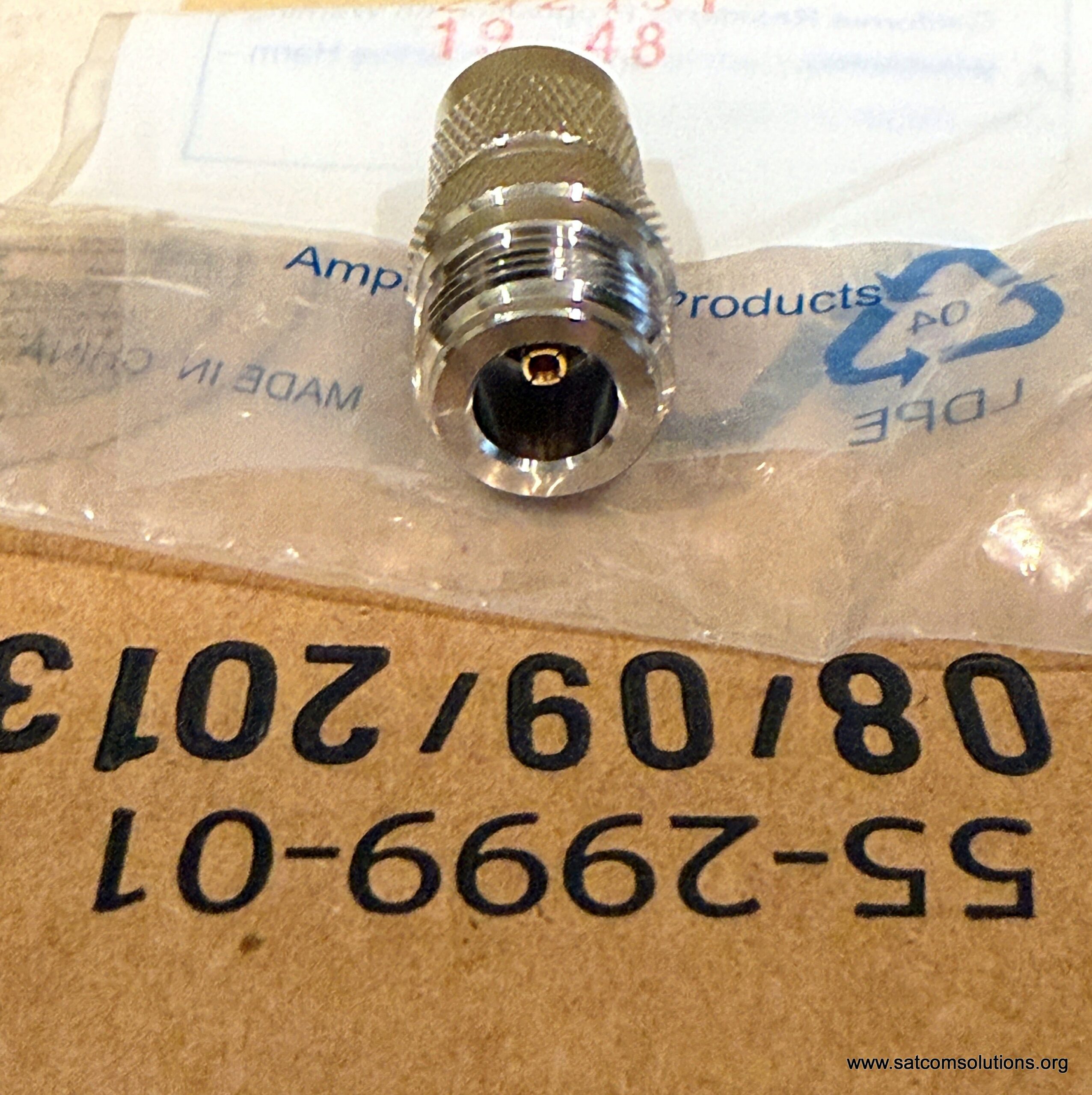

- Connector 2: N Jack / Female Socket
- Impedance: 50 Ohms
- Maximum Frequency: 11 GHz
- Adapter Type: Between-Series
- Configuration: Straight
- Body Material: Brass
- Body Finish: Nickel
- Center Contact Material: Phosphor Bronze
- Center Contact Finish: Gold
- Insulator: PTFE
- Operating Temperature: -40°C to +85°C
- Mounting: Free Hanging / In-Line
- Mating Cycles: 500
- Weight: 28.7 g
- Part Status: Active
Applications
- Satellite Communications (SATCOM)
- RF and microwave systems
- Antenna systems
- Wireless communications
- Ground stations
- RF test and measurement equipment
- Coaxial cable interconnection
- RF equipment integration
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Amphenol RF |
| Part Number | 242131 |
| Adapter Type | Between-Series |
| Connector 1 | TNC Male Plug |
| Connector 2 | N Female Jack |
| Impedance | 50 Ohms |
| Maximum Frequency | 11 GHz |
| Configuration | Straight |
| Body Material | Brass |
| Body Finish | Nickel |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Insulator | PTFE |
| Operating Temperature | -40°C to +85°C |
| Mounting | Free Hanging / In-Line |
The 242131 is an active Amphenol RF part number, and the manufacturer’s documentation confirms the TNC Male-to-N Female configuration.
