Sale!

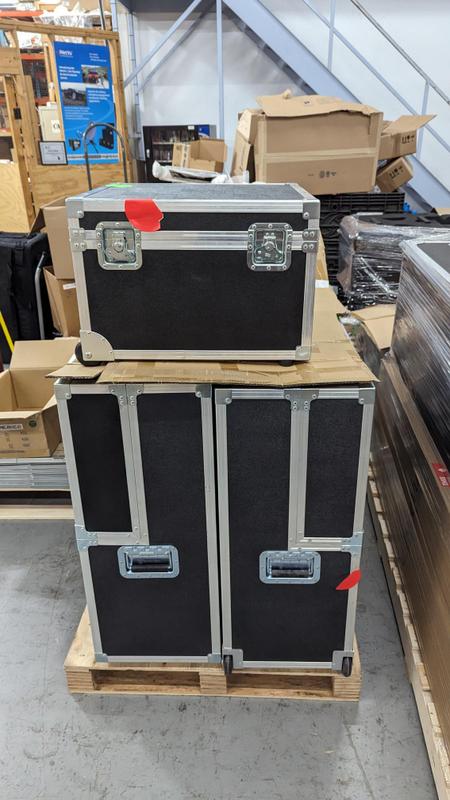

C-Com iNetVu 1.2M Ka-Band Auto Acquire Flyaway Antenna in Transportable Cases

$29,000.00

5 in stock


Description

In stock 5 Brand New C-Com iNetVu 1.2M Ka-Band Auto Acquire Flyaway Antenna in Transportable Cases, Part Number: FLY-1202G

FLY-1202G – 1.2M Ka-Band C-Com Antenna – Flyaway
iNetVu FLY-1202G Ka-band Platform with 2 Piece Reflector, 7720/7725 Remote Drive Module and Tripod in 3 Transportable Cases. 2 Axis Receive Only (17.0 – 22.2GHz) with Circular Ka-Band Feed arm Option.

Options Included:

-CTR-7710 iNetVu 7710 Controller, -Receive Port Terminator
-50 OHM Rx/Rx 30 meter – iNetVu Transportable Case
– iNetVu 3000C-24-CAN Handheld -CABLE FOR 7XXX CONTROLLER, DC
Install/Demo Controller

The new iNetVu® 1.2m Flyaway Antenna System is a highly portable, self-pointing, auto-acquire unit that is configurable with the iNetVu® 7715 Controller and can be assembled in less than 15 minutes by one person. The antenna features a 2-piece segmented Carbon reflector with compact pedestal and is designed to be cost-effective while providing exceptional performance in a lightweight package.

  • One button auto-pointing controller
  • 2 Axis motion Ka-band; 3 Axis optional
  • Airline transportable
  • Supports manual control when required
  • Designed to work with the iNetVu® 7715 Controller
  • Captive hardware / fasteners
  • 1.2m offset, prime focus, 2-piece Carbon reflector
  • No tools required for assembly / disassembly
  • Less than 15 minutes assembly time, one person job
  • Elevation-over-azimuth pedestal provides excellent stiffness characteristics and convenience for the user
  • Compliant with Avanti/Gilat Ka services
  • Compact packaging, 4 ruggedized shipping cases
  • Minimal maintenance required
  • Can be easily converted to support Ku-band
  • Optional 3W & 5W transceivers; higher BUCs also supported
  • Standard 2-year warranty

New 1.2M C-Com Ka-Band Antennas

FLY-1202G
