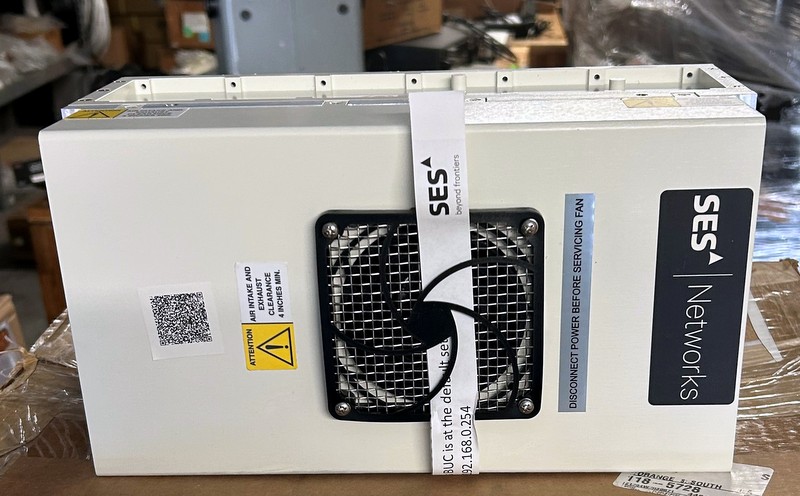

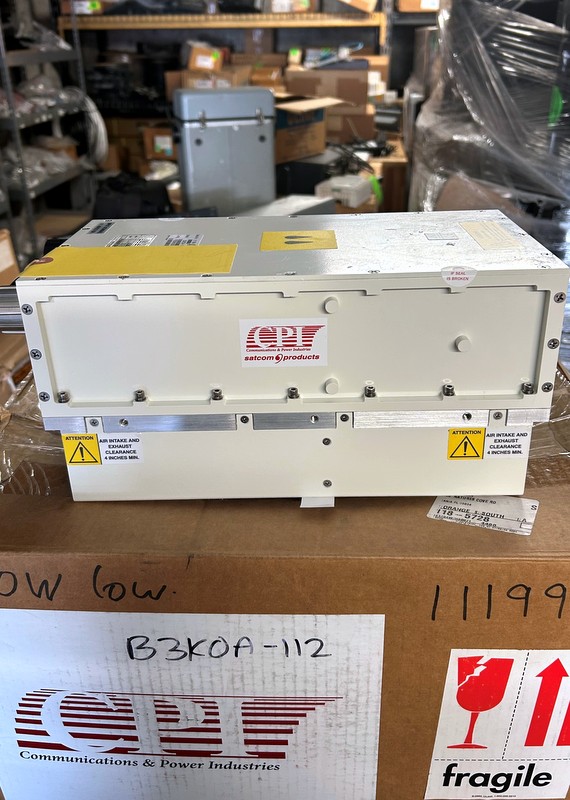

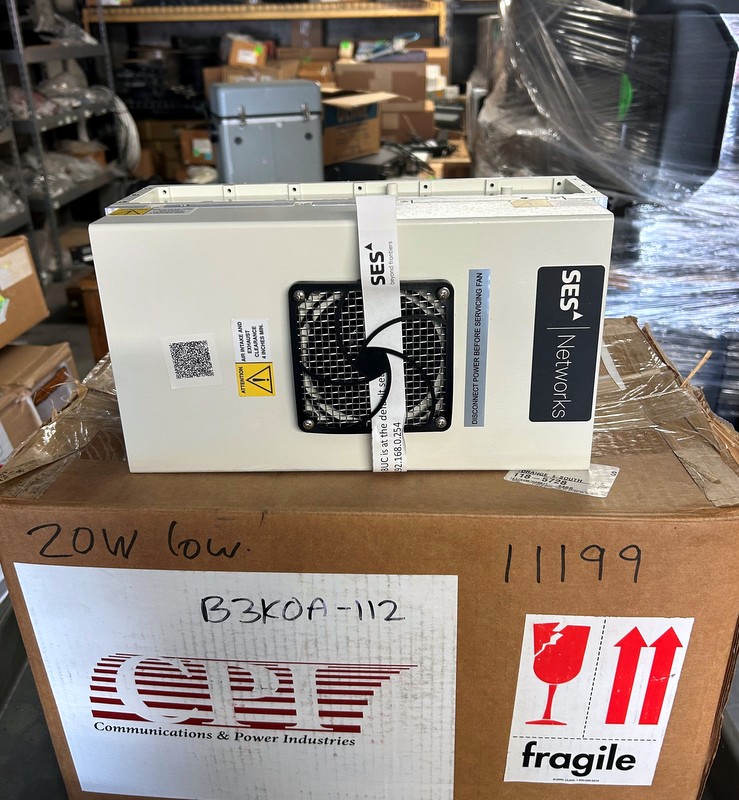

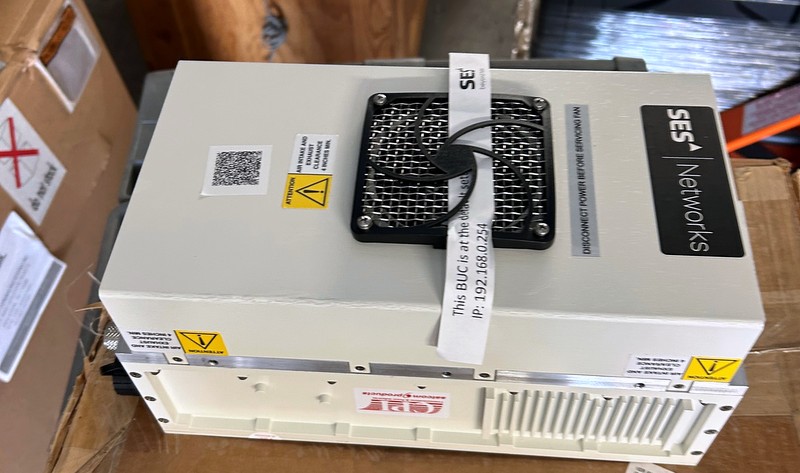

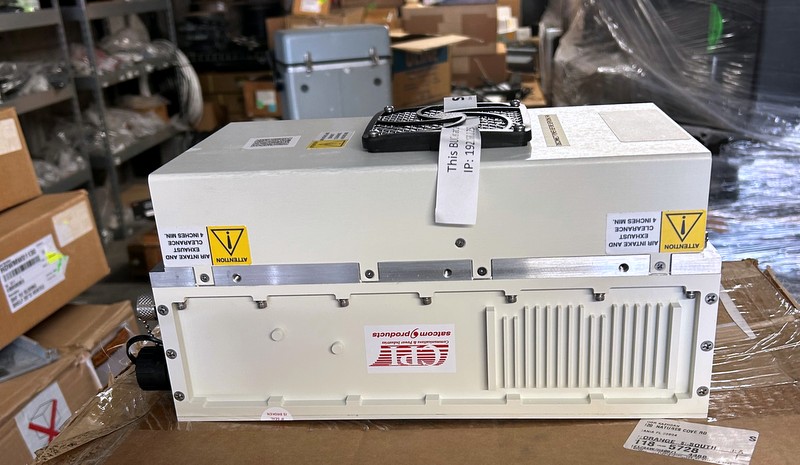

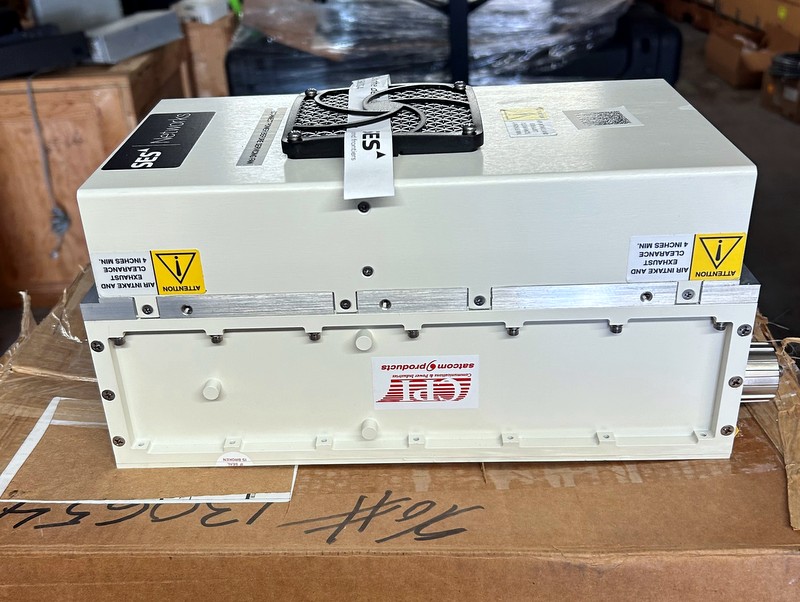

CPI B3K0A-112 – 40W Ka-Band BUC (Block Upconverter)

The CPI B3K0A-112 is a high-performance 40W Ka-Band Block Upconverter (BUC) engineered for demanding satellite uplink applications where performance, reliability, and size matter. Designed for both fixed and transportable VSAT systems, this BUC delivers exceptional RF performance in a compact, rugged package.

Ideal for commercial, broadcast, and military-grade satellite communications, the B3K0A-112 supports high throughput Ka-band transmissions and is built to withstand harsh environmental conditions.

🔹 Key Features:

• Output Power: 40 Watts (P1dB)

• Frequency Range: 29.0 – 31.0 GHz (Ka-Band)

• IF Input: 950 – 2000 MHz

• High linearity and low phase noise

• Integrated power detection and M&C interface

• Compact, lightweight outdoor package

• Weatherproof and ruggedized for harsh environments

• Power Supply Input: Typically 48V DC or external AC supply

🔹 Applications:

• Ka-band VSAT terminals

• SNG (Satellite News Gathering) and broadcast uplinks

• Tactical and mobile SATCOM systems

• Government and defense satellite links

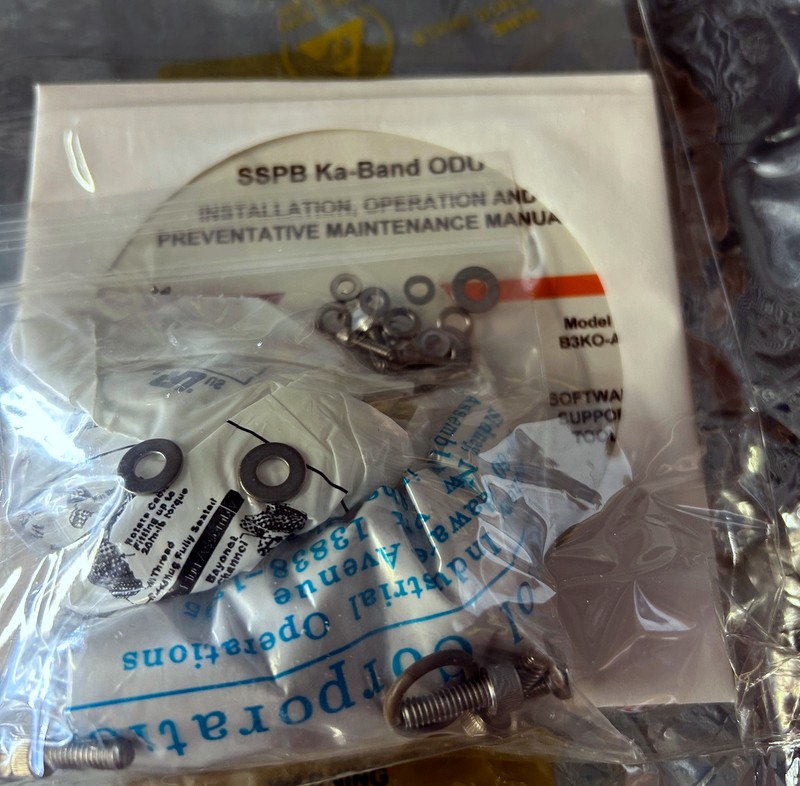

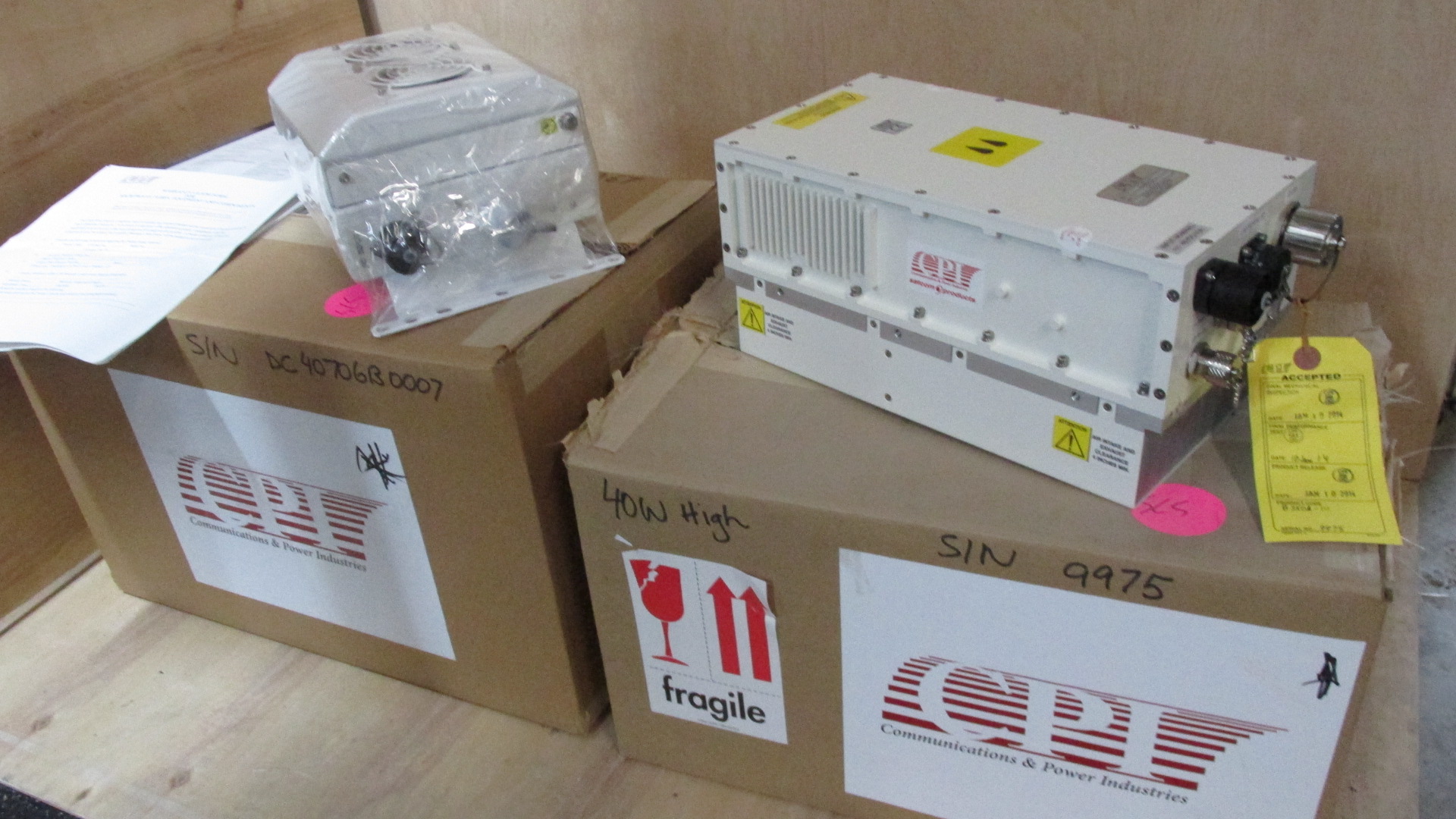

📦 Includes:

• CPI B3K0A-112 Ka-Band BUC

• Mounting hardware (if applicable)

• M&C cable or power connector (based on configuration)

• Quick start guide or user documentation
