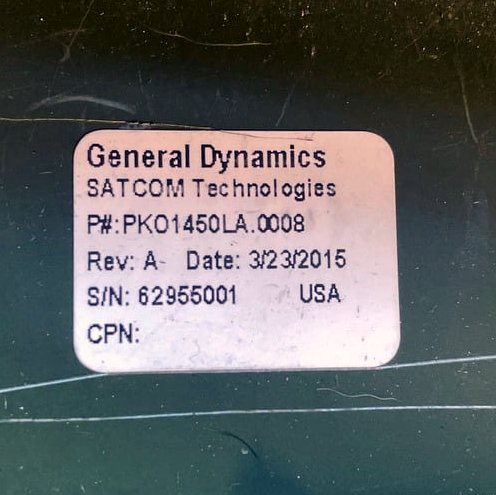

GDSatcom PK01450 LA – 80 W Ku-Band Block Upconverter (BUC)

The PK01450 LA from GDSatcom is a rugged, antenna-mountable 80 W Ku-Band Block Upconverter, designed to deliver reliable and efficient uplink performance in harsh outdoor environments. This compact BUC is ideal for VSAT, broadcast, maritime, and mobile satellite applications.

Key Features

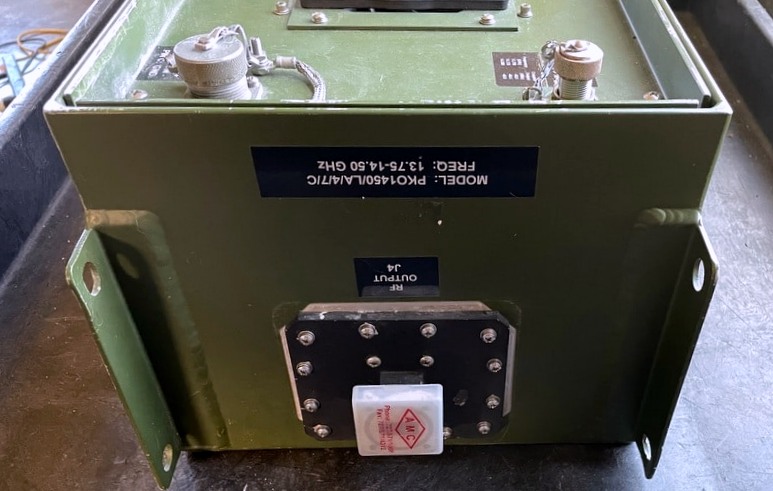

• RF Output: 80 W Psat at 13.75–14.5 GHz Ku-Band

• IF Input: 950–1700 MHz, N-type connector

• Upconverter and SSPA integrated in a single, weather-sealed enclosure

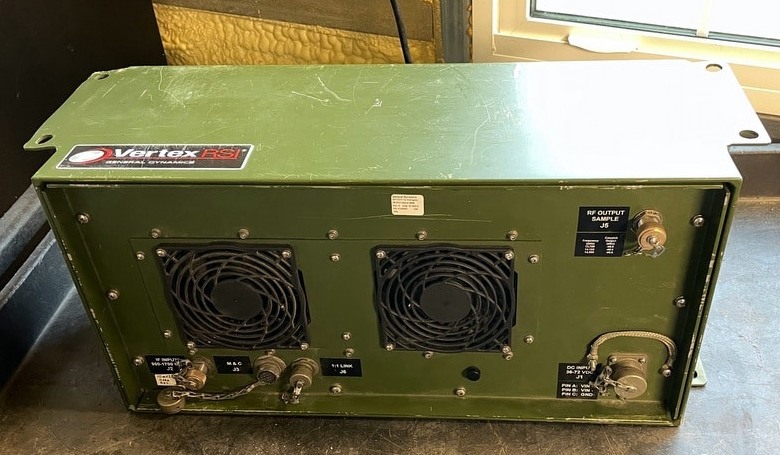

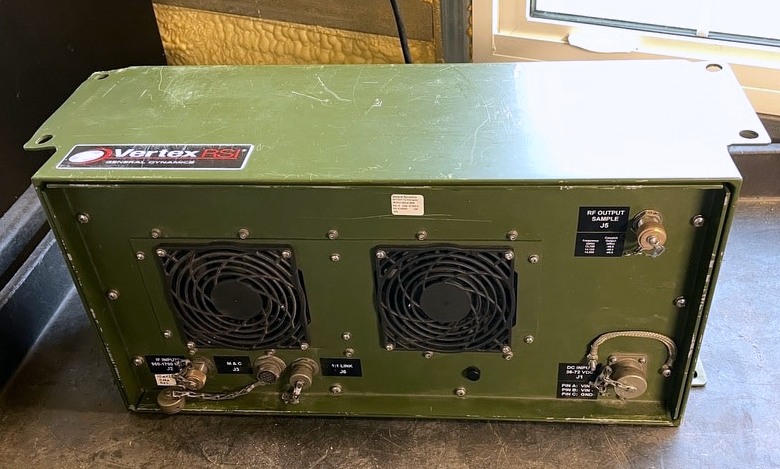

• Cooling: Internal fan with forced-air thermal management

• Built-in 10 MHz reference input

• M&C via RS-485/RS-232 or optional Ethernet SNMP interface

• Rugged, dust- and water-resistant housing rated for outdoor use

Technical Highlights

• Gain: ≥ 60 dB with flatness across the band

• Output P1 dB: ~49 dBm; Psat: ~50 dBm

• VSWR: ≤ 2.0:1

• Phase noise: ≤ –102 dBc/Hz @ 1 MHz

• Input voltage range: +18 to +56 V DC (MIL-circular connector)

• Power draw: ~610 W at Psat

• IP65-rated enclosure, designed to operate between –40 °C to +60 °C

Applications

• VSAT hubs and remote terminals

• Maritime and transportable satellite links

• Broadcast and enterprise communications

• Emergency response and mobile networking

Why Choose the PK01450?
With its robust 80 W RF output, sleek size, internal thermal management, and rugged build, the PK01450 LA is engineered for high-demand satellite uplink scenarios. It offers an excellent balance of power, performance, and field reliability for any outdoor deployment.
