Description

For Sale: Hughes Satellite Equipment

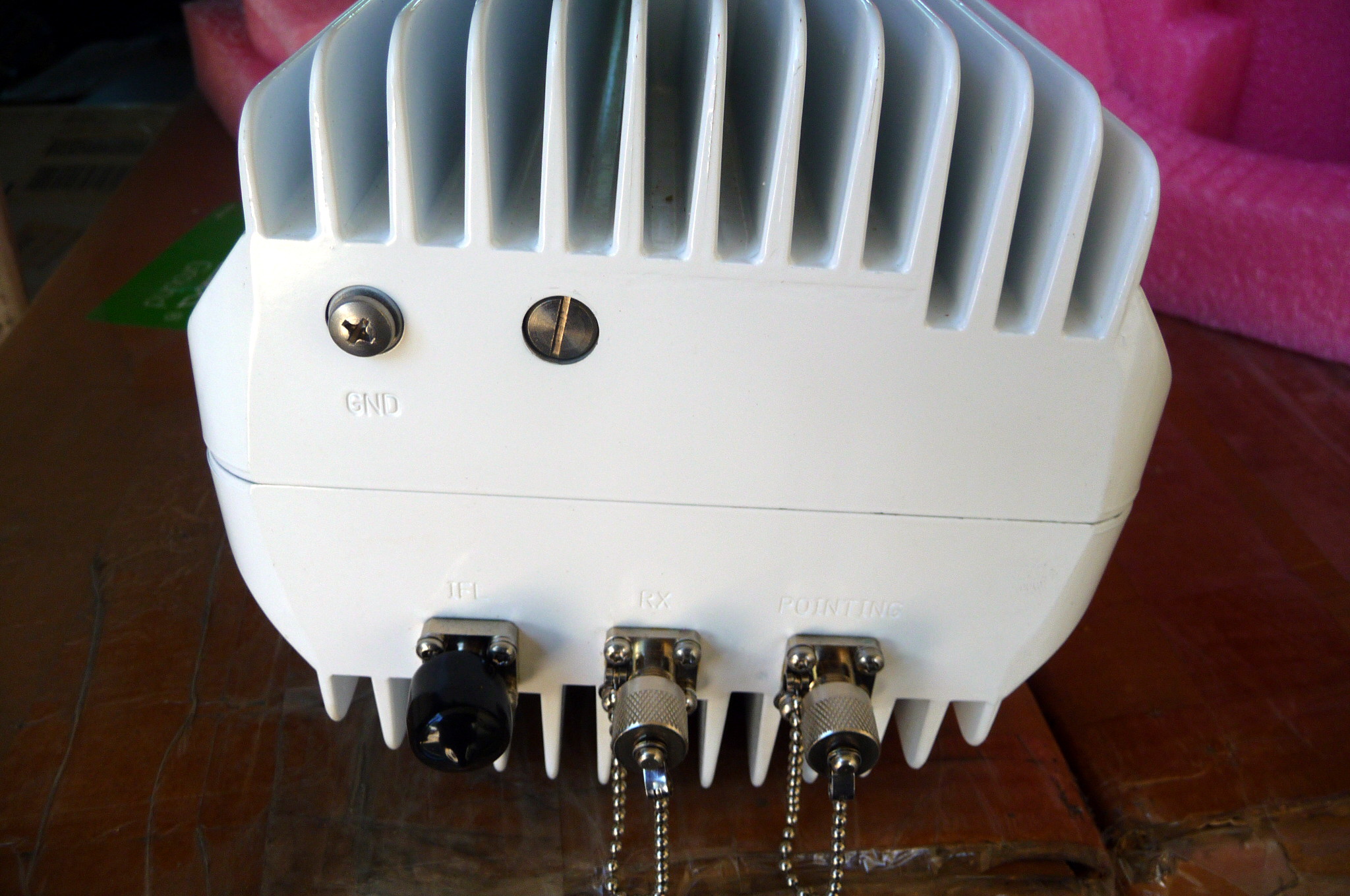

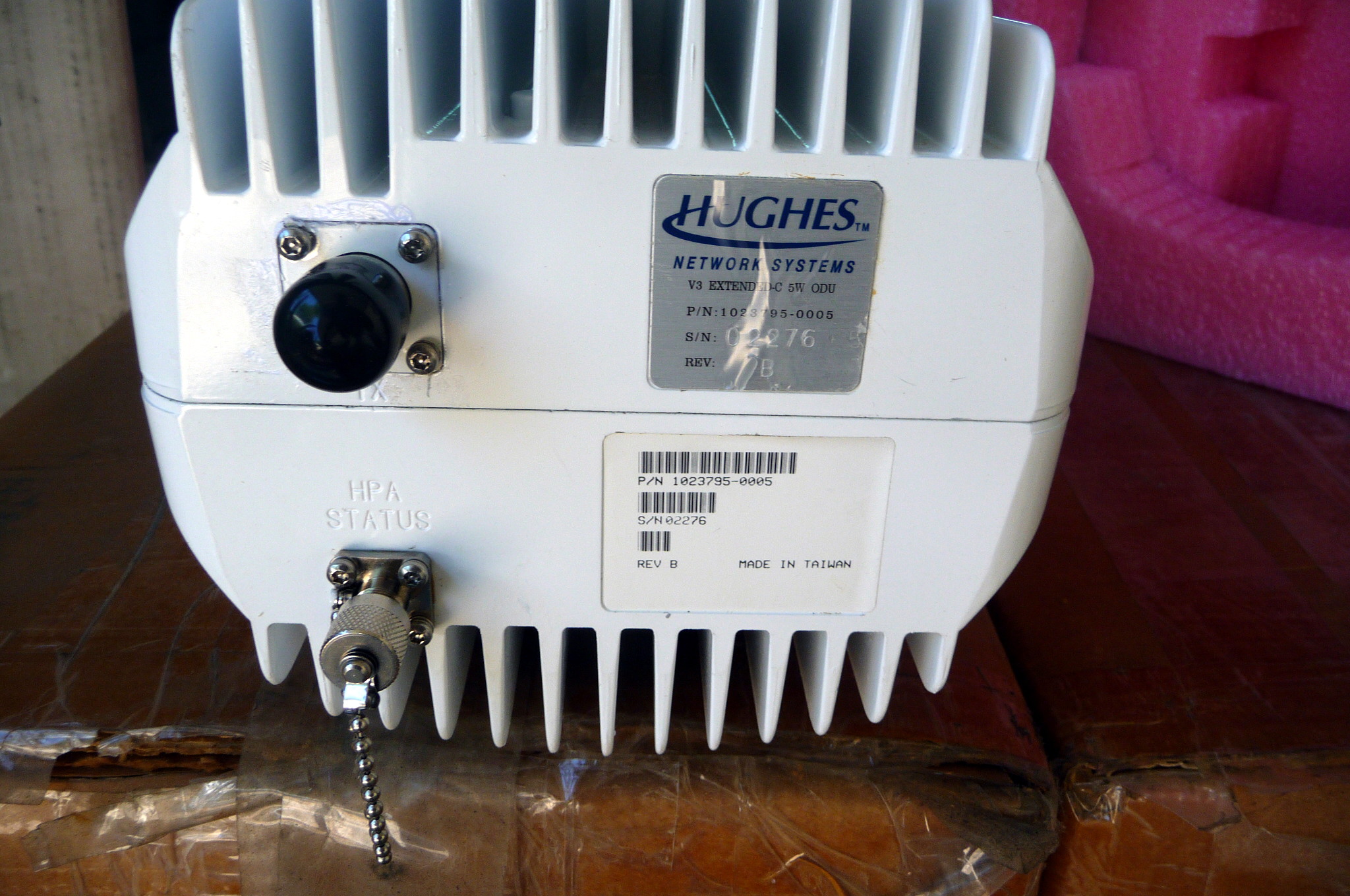

• Hughes 5 Watt Units – Quantity: 4 (used; one unit has some markings and may be defective)

• Hughes 20 Watt Units – Quantity: 8 (brand new, still in original boxes)

These Hughes units are reliable, high-quality satellite amplifiers suitable for various VSAT applications. The 20 Watt units are new and ready for immediate deployment, offering excellent performance and durability.

Contact us for pricing and availability.

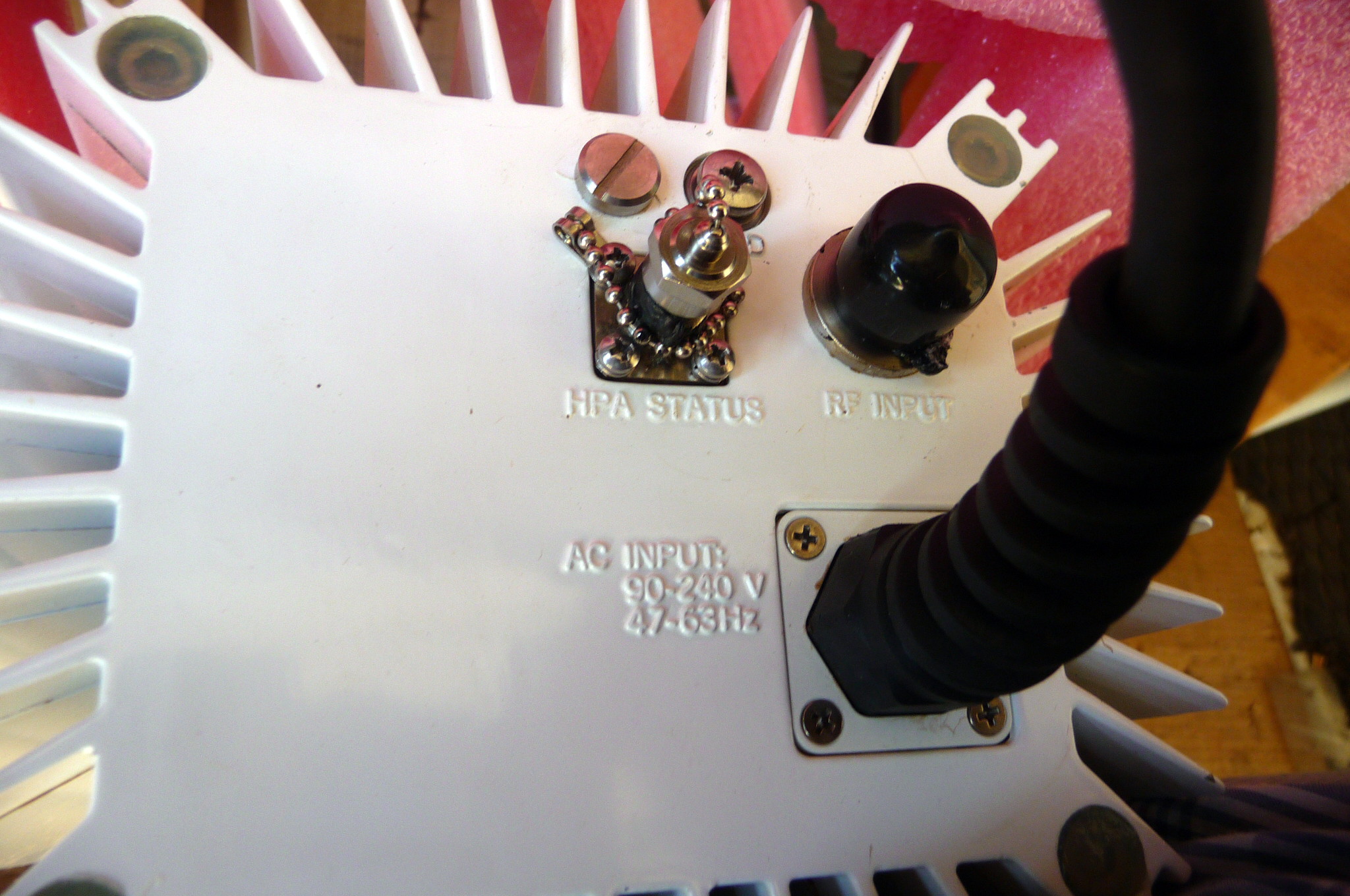

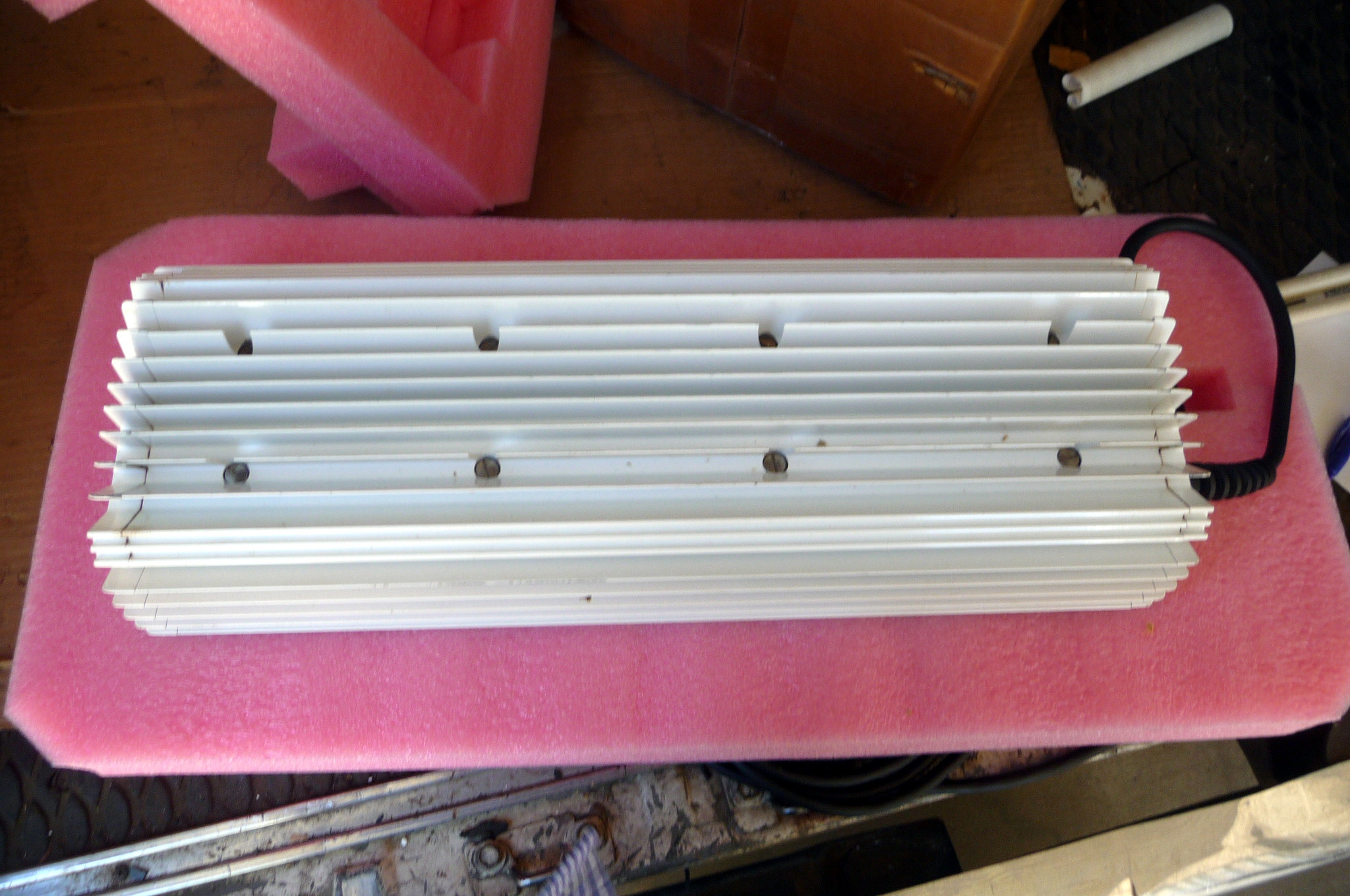

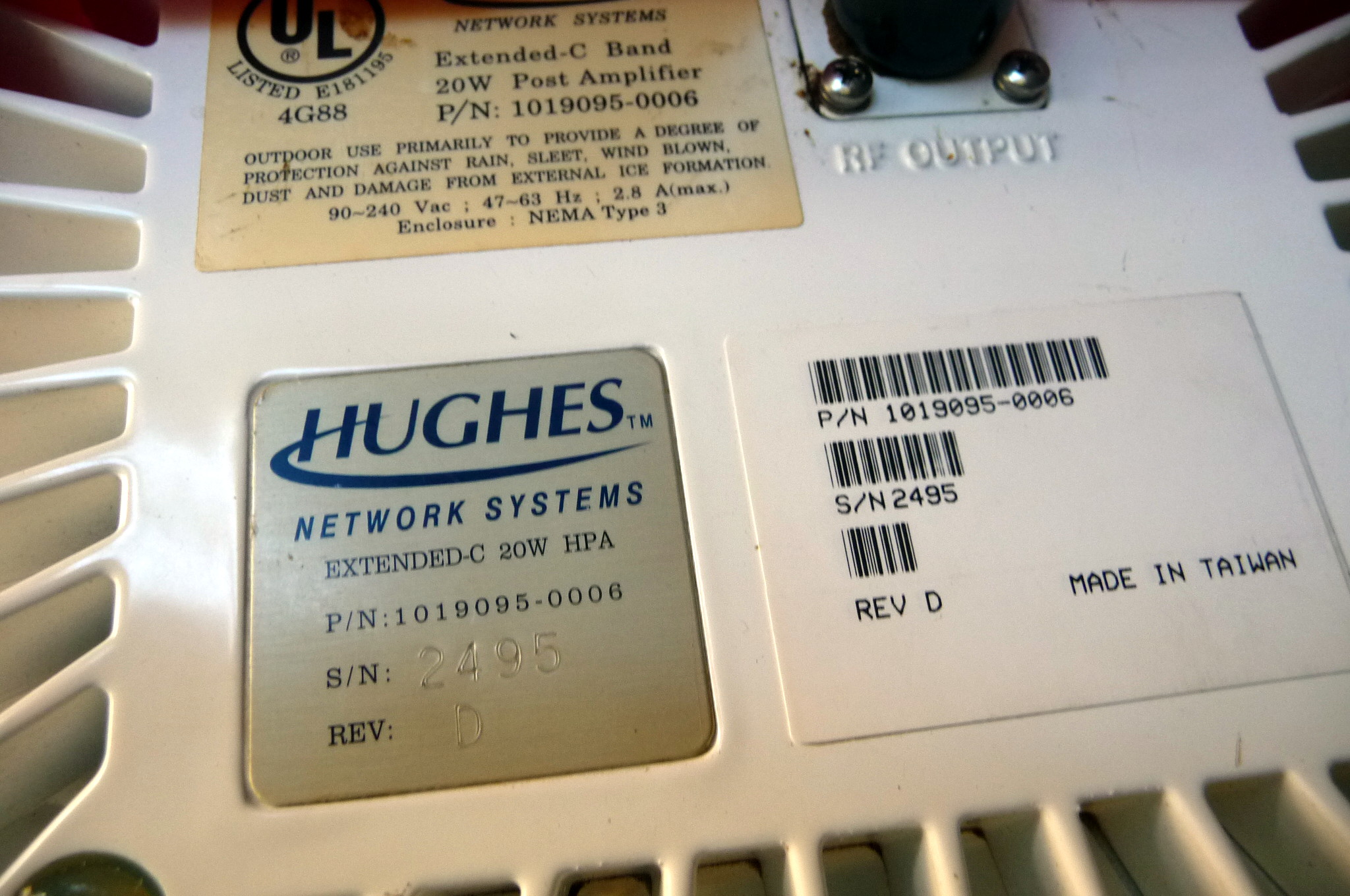

New Hughes Network Systems 20W Extended C-Band BUC Amplifier (P/N: 1019095-00206)

The Hughes Network Systems 20W Extended C-Band Block Upconverter (BUC) Amplifier offers reliable, high-performance uplink amplification designed for satellite communications across extended C-band frequencies. Its compact and rugged design makes it ideal for fixed and mobile VSAT applications where signal integrity and stability are critical.

Key Features:

• Output Power: 20 Watts

• Frequency Range: Extended C-Band (typically 5.85 GHz to 6.425 GHz)

• High Linearity: Ensures excellent signal quality with minimal distortion

• Low Phase Noise: Maintains signal integrity for superior performance

• Compact & Durable: Designed for harsh environmental conditions with robust housing

• Compatibility: Seamlessly integrates with Hughes and other industry-standard satellite equipment

• Part Number: 1019095-00206

Technical Specifications:

• Output Power: 20W (linear)

• Frequency Band: Extended C-Band (5.85–6.425 GHz)

• Gain: Approximately 50 dB

• Input Power Range: -30 dBm to 0 dBm

• Phase Noise: Typically < -80 dBc/Hz at 10 kHz offset

• Power Supply: 24V DC (typical)

• Operating Temperature: -40°C to +60°C

• Connectors: Standard RF connectors per industry norms

• Dimensions & Weight: Compact form factor suitable for VSAT terminals

Compliance & Standards:

• Meets FCC and ETSI regulatory requirements

• Designed to meet MIL-STD environmental standards for durability

• RoHS Compliant

This BUC amplifier ensures consistent and robust uplink performance, making it a trusted choice for demanding satellite communication networks.
