Description
The Intellian v240M 2 Dual‑Band Multi‑Orbit VSAT Antenna System is a robust 2.4 m maritime satellite antenna, designed for seamless, high-throughput connectivity under demanding conditions.
🚢 Key Features & Benefits
-
Dual-Band & Automatic Switching
Tracks both C‑band and Ku‑band satellites and automatically switches between bands without user intervention—supporting circular & linear C‑band feeds and cross/co-polarized Ku‑band feeds digisat.org+13intelliantech.com+13intelliantech.com+13. -
Multi-Orbit Capability
Supports GEO and MEO satellites; can be upgraded to track Ka‑band and next‑generation NGSO networks via the Intelligent Mediator store.orbitalconnect.com+8intelliantech.com+8store.orbitalconnect.com+8. -
Top-Tier RF Performance
Consistent high-speed connectivity with support for BUC power up to 400 W in C‑ and Ku‑bands. Reflector diameter is 2.4 m, with a G/T of ~20 dB/K (C‑band) and ~28 dB/K (Ku‑band) SatNews+7satmarin.com+7intelliantech.com+7. -
Future-Proof & Flexible
Easily upgraded to Ka‑band or tri-band systems; fiber‑optic links minimize signal loss and simplify installations intelliantech.com+14intelliantech.com+14SatNews+14. -
High-Gain, Stabilized Structure
Rugged 3-axis stabilized pedestal with <0.2° pointing error in rough seas; heavy-duty radome (4.3 × 3.9 m) ensures protection in maritime environments satmarin.com. -
Integrated Intelligent Mediator
Automatically manages band/orbit switching, tracks multiple satellites, and controls up to eight antennas and modems—eliminating comms interruptions intelliantech.com+7store.orbitalconnect.com+7Bluesat+7SatNews. -
Seamless Integration & Warranty Support

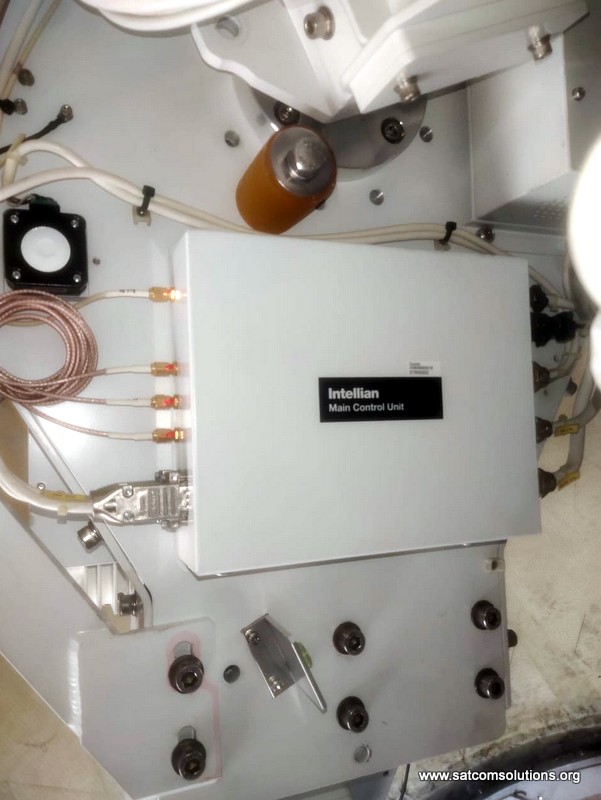

Includes Antenna Control Unit (ACU) with Ethernet, serial, and I/O interfaces; Wi‑Fi enabled remote management, three-year parts and two-year labor warranty Satellite Phone Storestore.orbitalconnect.com+3apollosatellite.com+3americansatellite.us+3.
🔧 Typical Accessories Included
-

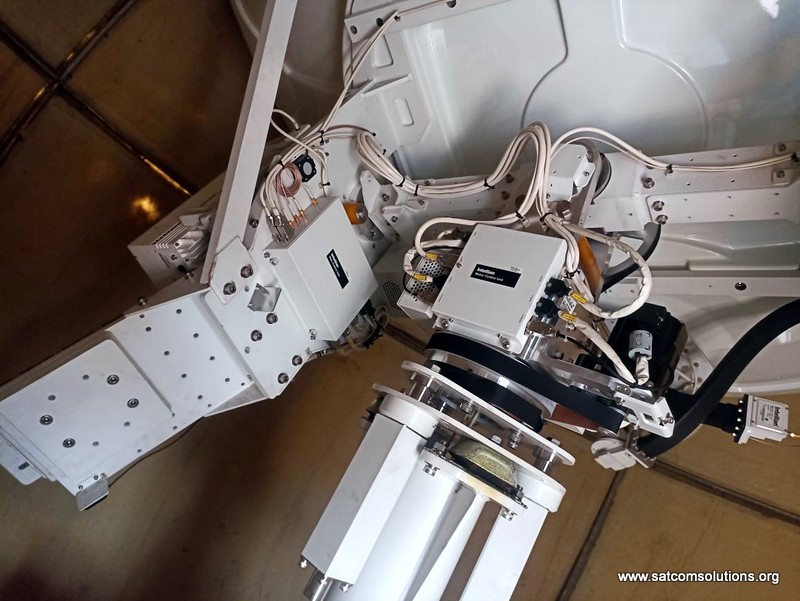

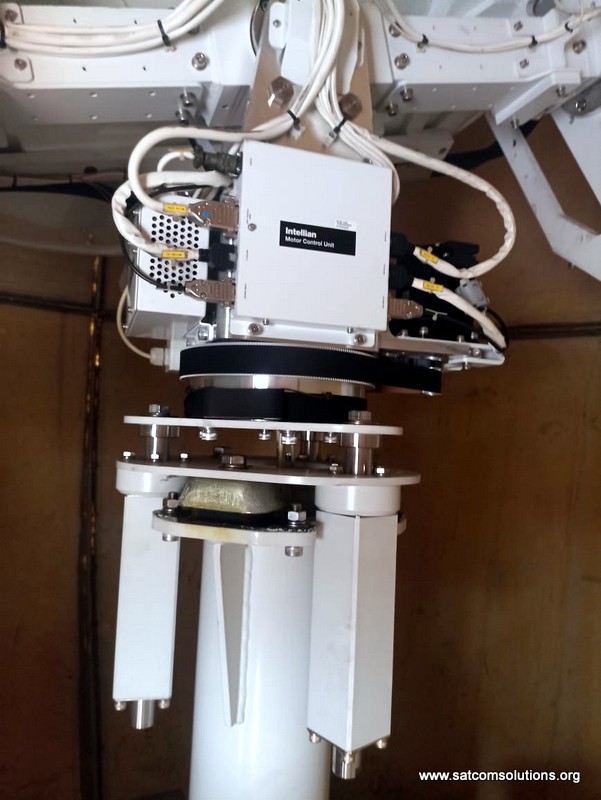

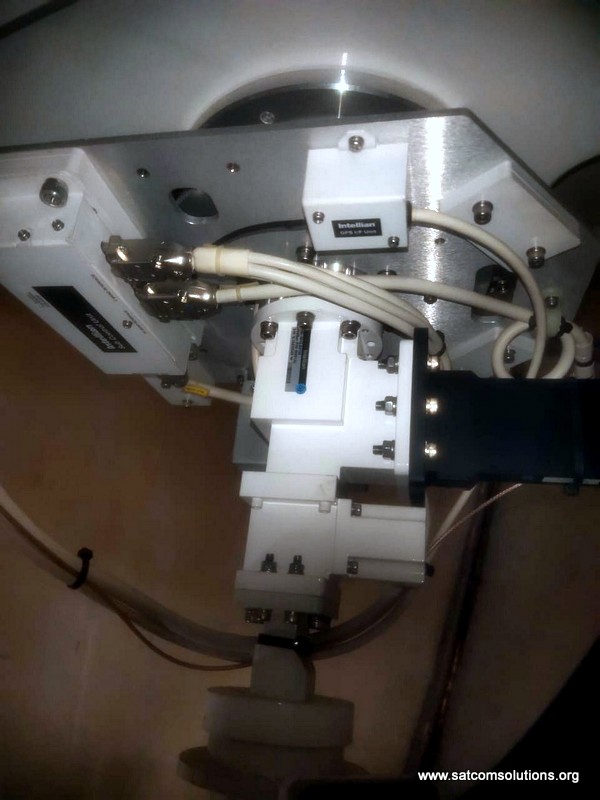

Dual-band radome, pedestal, and feed assemblies
-

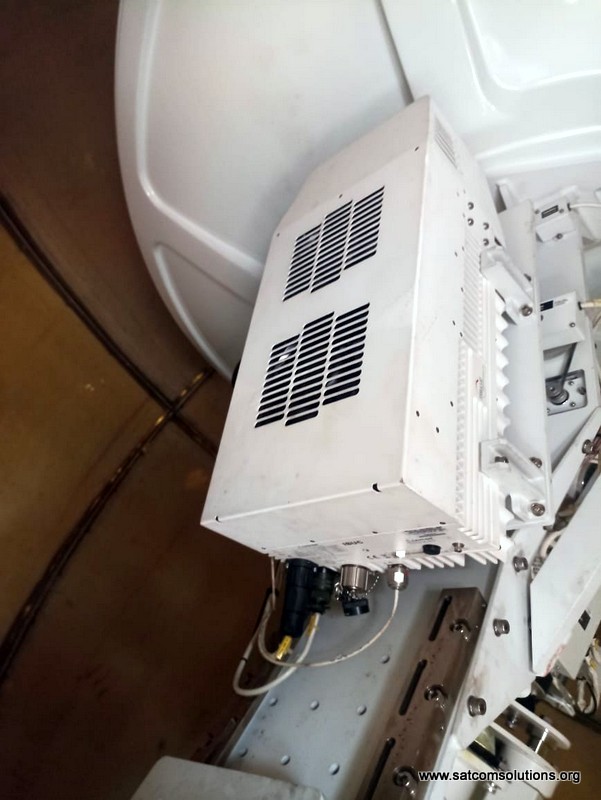

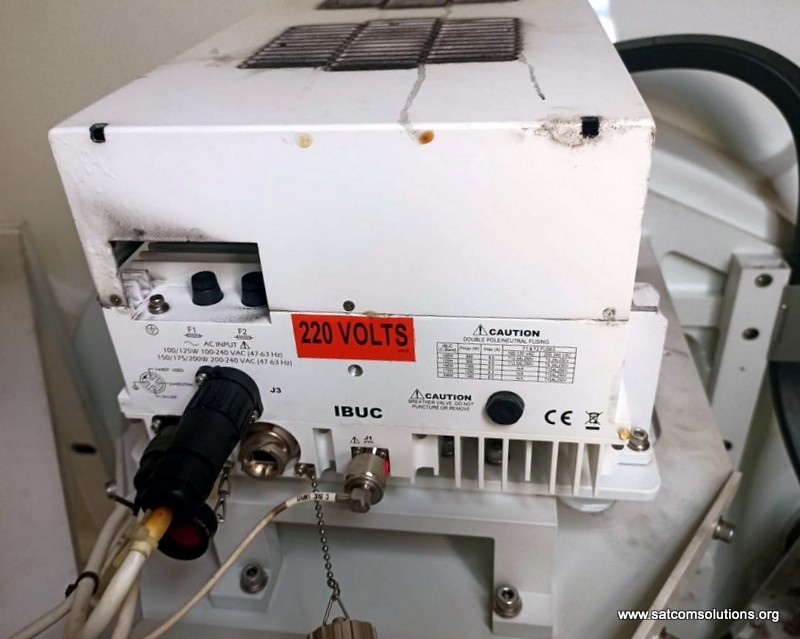

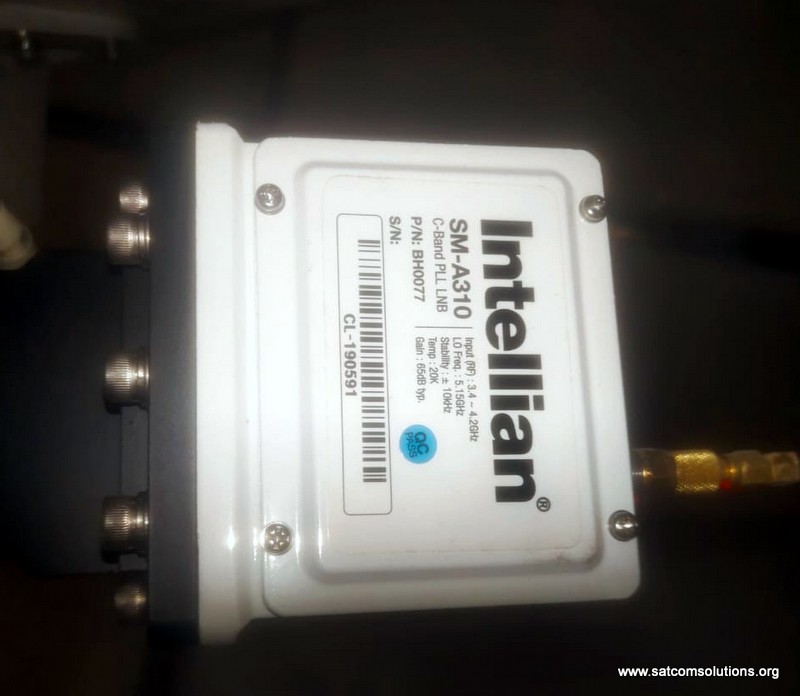

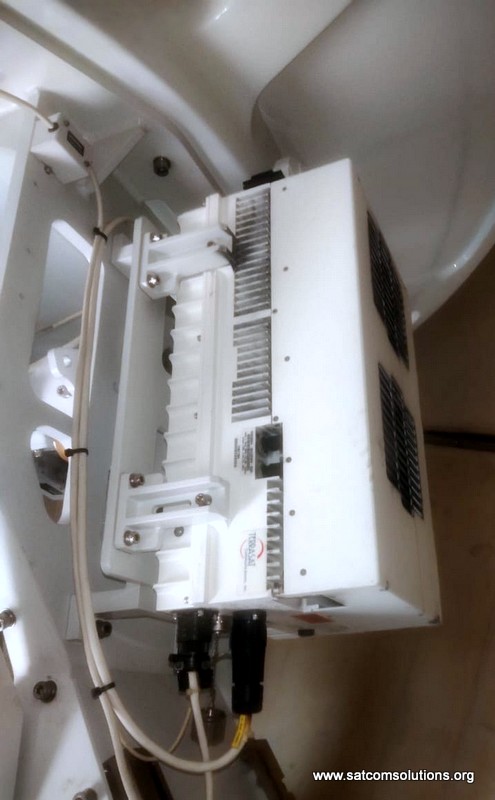

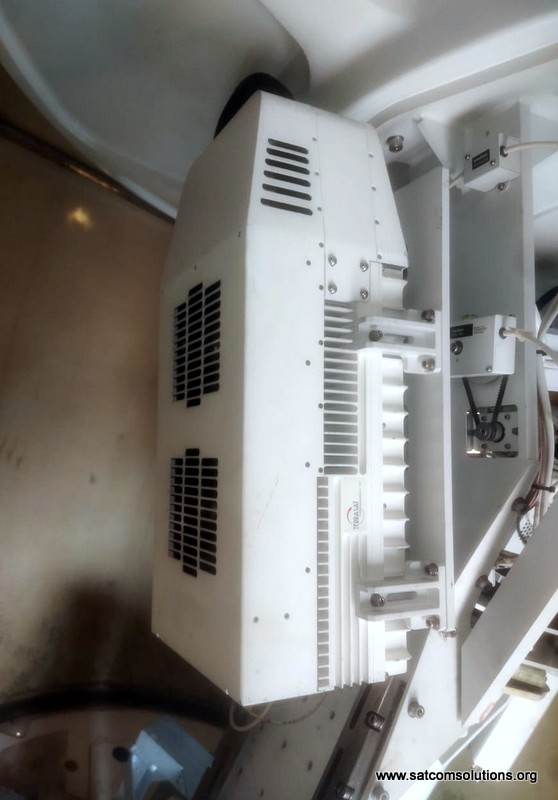

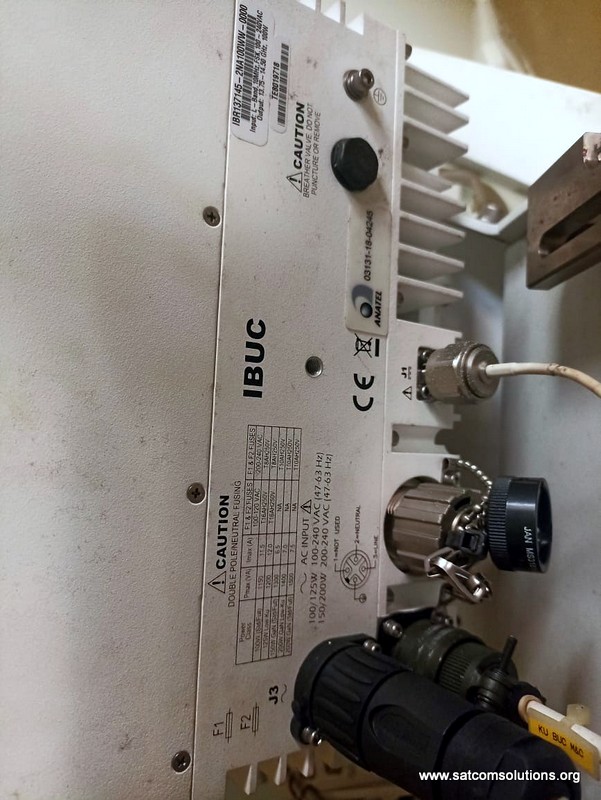

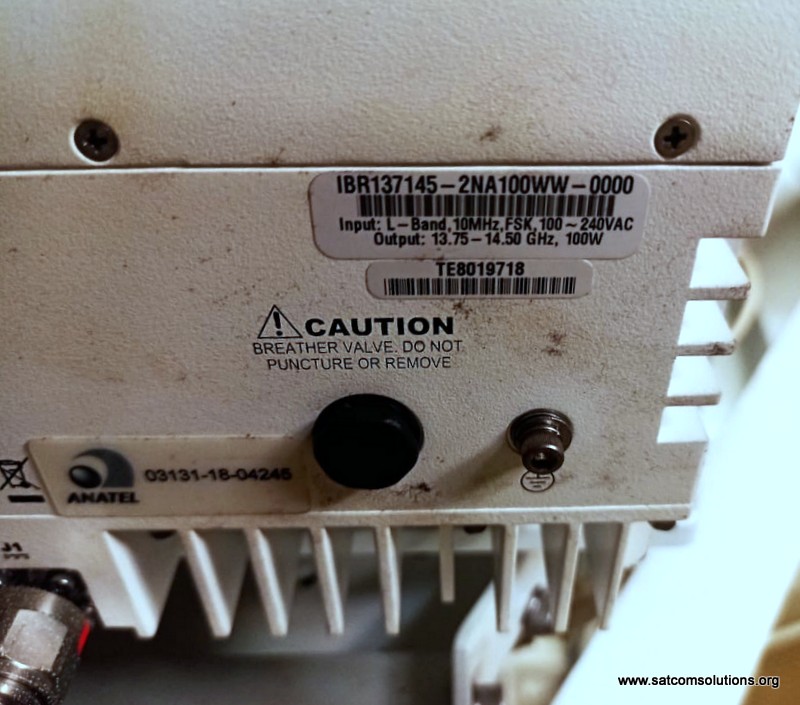

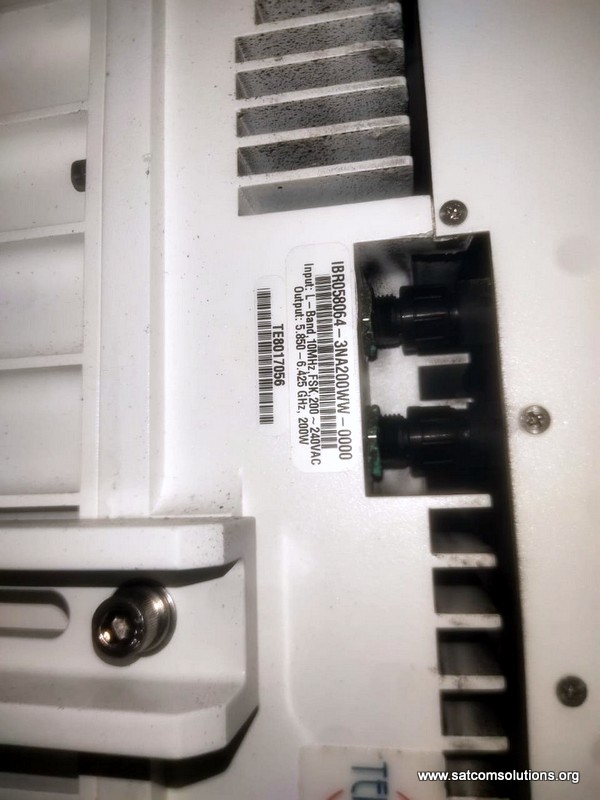

C‑band & Ku‑band LNBs and compatible BUCs
-
ACU and optional fiber-optic extension kits
-
Installation kits and mounting clamps
-
Future-upgrade modules (Ka‑band/mediator)
📘 Technical Specifications
| Specification | Value |
|---|---|
| Reflector Diameter | 240 cm |
| Radome (HxD) | 431 × 391 cm |
| Weight | ~1,133 kg (2,500 lb) |
| Stabilization Accuracy | <0.2° pointing error in heavy seas |
| BUC Power Range | Up to 400 W in C‑ & Ku‑bands |
| Polarization | C‑band: circular & linear Ku‑band: linear/co‑ and cross‑polarized |
| Upgradability | Supports Ka‑band / NGSO via Intelligent Mediator |
| Warranty | 3 years parts, 2 years labor |
🎯 Ideal For
-
Maritime VSAT for cruise ships, offshore vessels, energy platforms
-
Enterprise-grade bandwidth backhauls
-
Multi-orbit satellite operations for redundancy and flexibility
-
Future-ready setups requiring C, Ku, and Ka-band mobility
Summary:
The Intellian v240M 2 offers unmatched flexibility and reliability with dual-band, multi-orbit support—all in a rugged package tailored for harsh maritime conditions. It’s an excellent long-term investment in future-ready satellite comms.
