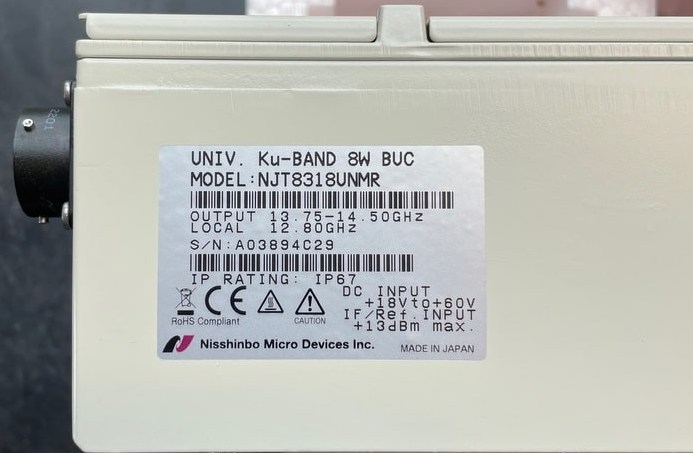

NJR NJT8318 – New 8W Ku-Band BUC (13.75 – 14.5 GHz)

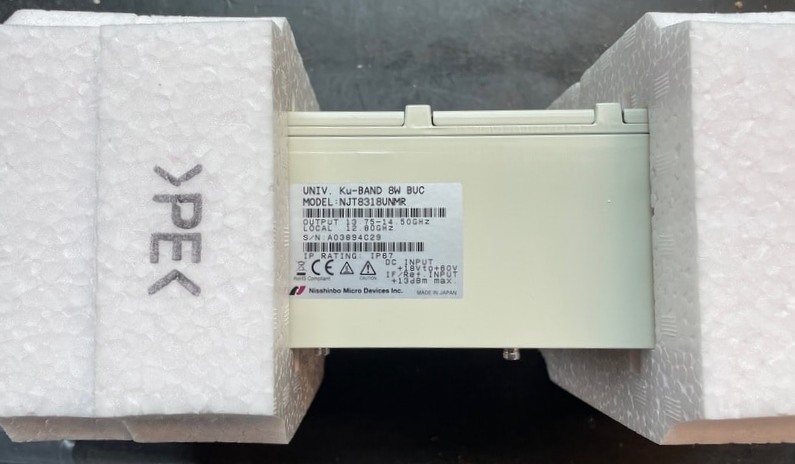

We’re pleased to announce that the NJT8318 8W Ku-Band BUCs have just arrived in stock. These units are brand new, covering the full Ku-band transmit frequency range of 13.75 to 14.5 GHz, and are ideal for a wide range of satellite uplink applications.

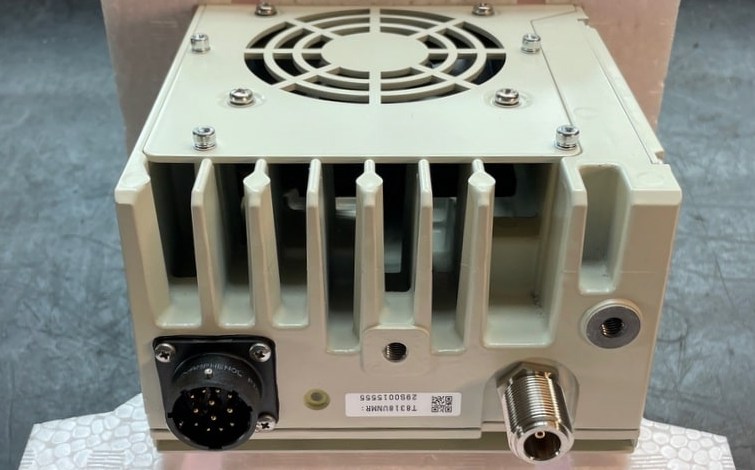

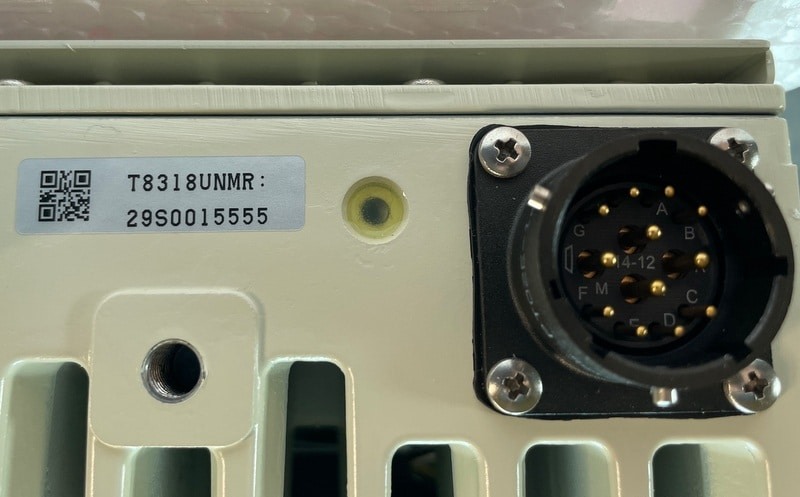

The NJT8318 is powered by DC voltage ranging from 18V to 60V, supplied either through the IFL coaxial cable or via the MS-type connector. We’ve also acquired an outdoor 48VDC power supply to facilitate testing through both power input options.

Key Features:

• Output Power: 8W

• Frequency Range: 13.75 – 14.5 GHz (Full Ku-Band)

• DC Input Voltage: 18V to 60V

• Power Input Options: Via IFL cable or MS connector

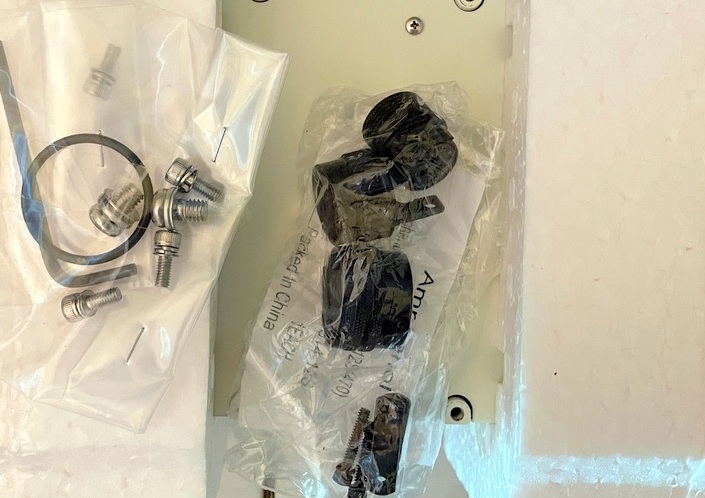

• Connectors Included: M&C cable connectors provided
