Description

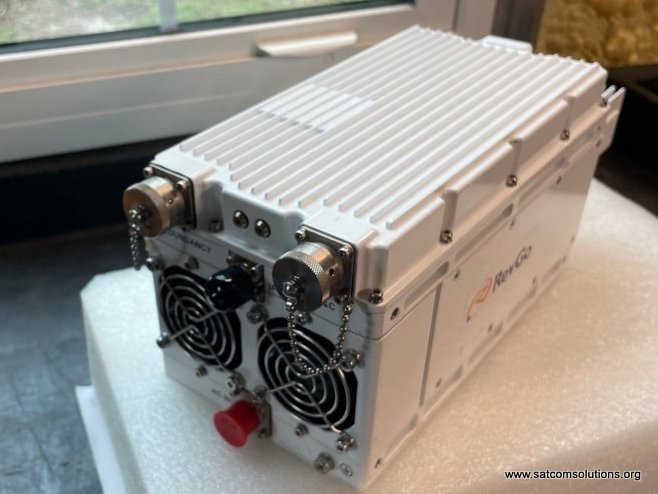

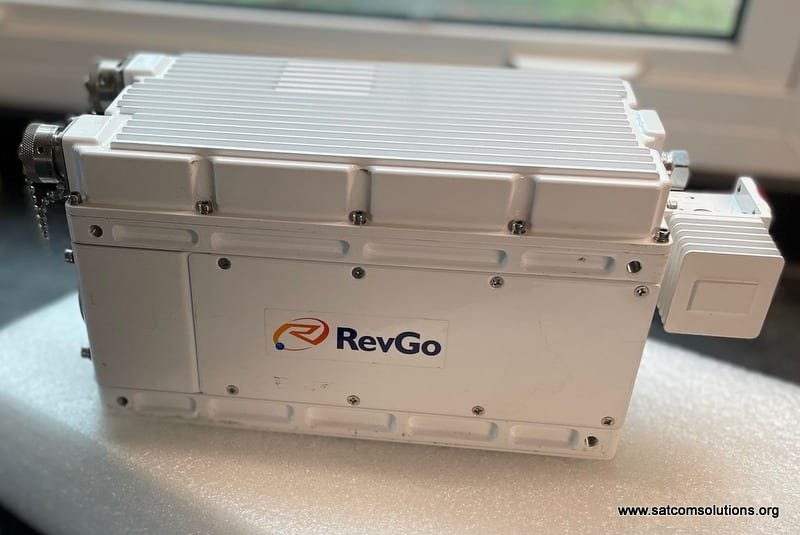

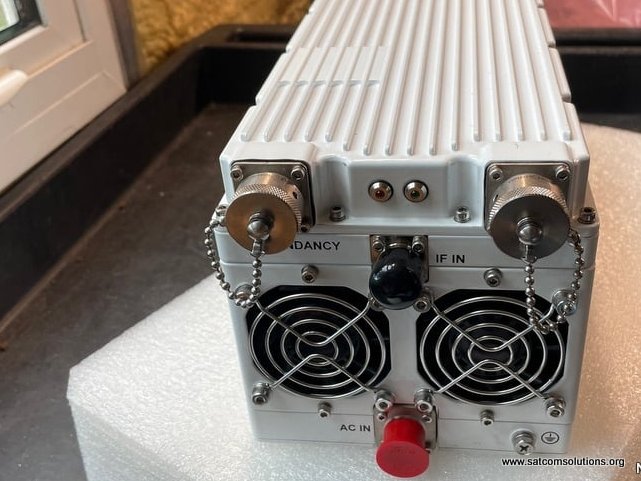

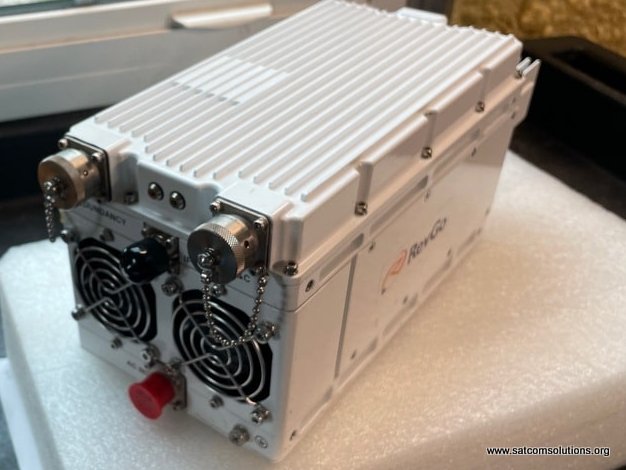

RevGo 100W Ku-Band BUC – Model RGUC-U2100-ACRE-C (New in Manufacturer’s Box)
The RevGo RGUC-U2100-ACRE-C is a high-performance 100W Ku-Band Block Upconverter (BUC) designed for demanding VSAT, broadcast, enterprise, and government satellite communication applications. This unit is brand new in the manufacturer’s original packaging and includes antenna support brackets for easy installation.
Operating across the 13.5 to 14.5 GHz frequency range, the RevGo 100W Ku-Band BUC delivers excellent linearity, low phase noise performance, and exceptional reliability, making it ideal for high-throughput satellite networks and advanced modulation schemes.
RevGo has been manufacturing satellite earth station RF equipment since 2002 and is recognized for producing reliable, high-quality products using an ISO 9001:2015 certified quality management system. Customers consistently report excellent performance and responsive technical support.
Key Features
- Model: RGUC-U2100-ACRE-C
- Output Power: 100 Watts
- Frequency Range: 13.5 – 14.5 GHz
- AC Powered Design
- Includes Antenna Support Brackets
- Low Phase Noise Performance (Exceeds IESS-308/309 Requirements)
- Optimized Linearity for High Data Rate Applications
- Designed for High-Order Modulation Schemes
- Rugged Outdoor Construction
- Operating Temperature: -40°C to +65°C
- Optional Redundancy Configurations Available
- Built Using Advanced RFIC and GaN Technologies
- Field Failure Rate Less Than 0.25%
Physical Specifications
- BUC Weight: 12.5 lbs (5.7 kg)
- Shipping Weight: 14.3 lbs
- Shipping Dimensions: 10 x 16 x 9 inches
Included
- RevGo 100W Ku-Band BUC
- Antenna Support Brackets

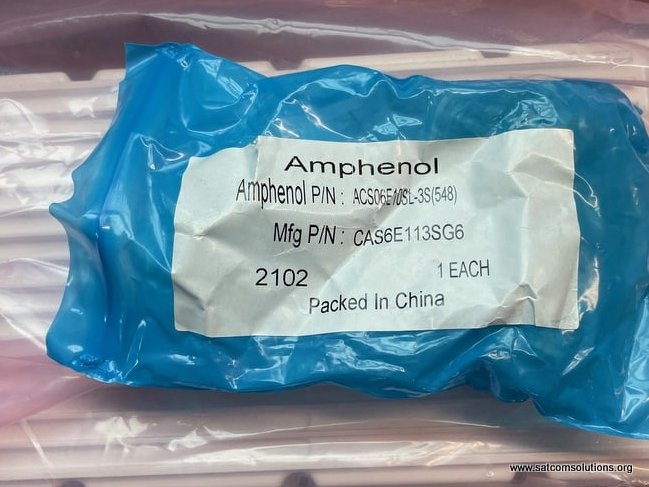

- Required Connectors
Note: No interface or power cables are included with new BUCs.
Applications
- VSAT Networks
- Teleports
- Enterprise Satellite Communications
- Government and Defense Networks
- Broadcast and Media Uplinks
- High Throughput Satellite (HTS) Systems
Contact Satcom Solutions for pricing, availability, and worldwide shipping options.
