Description

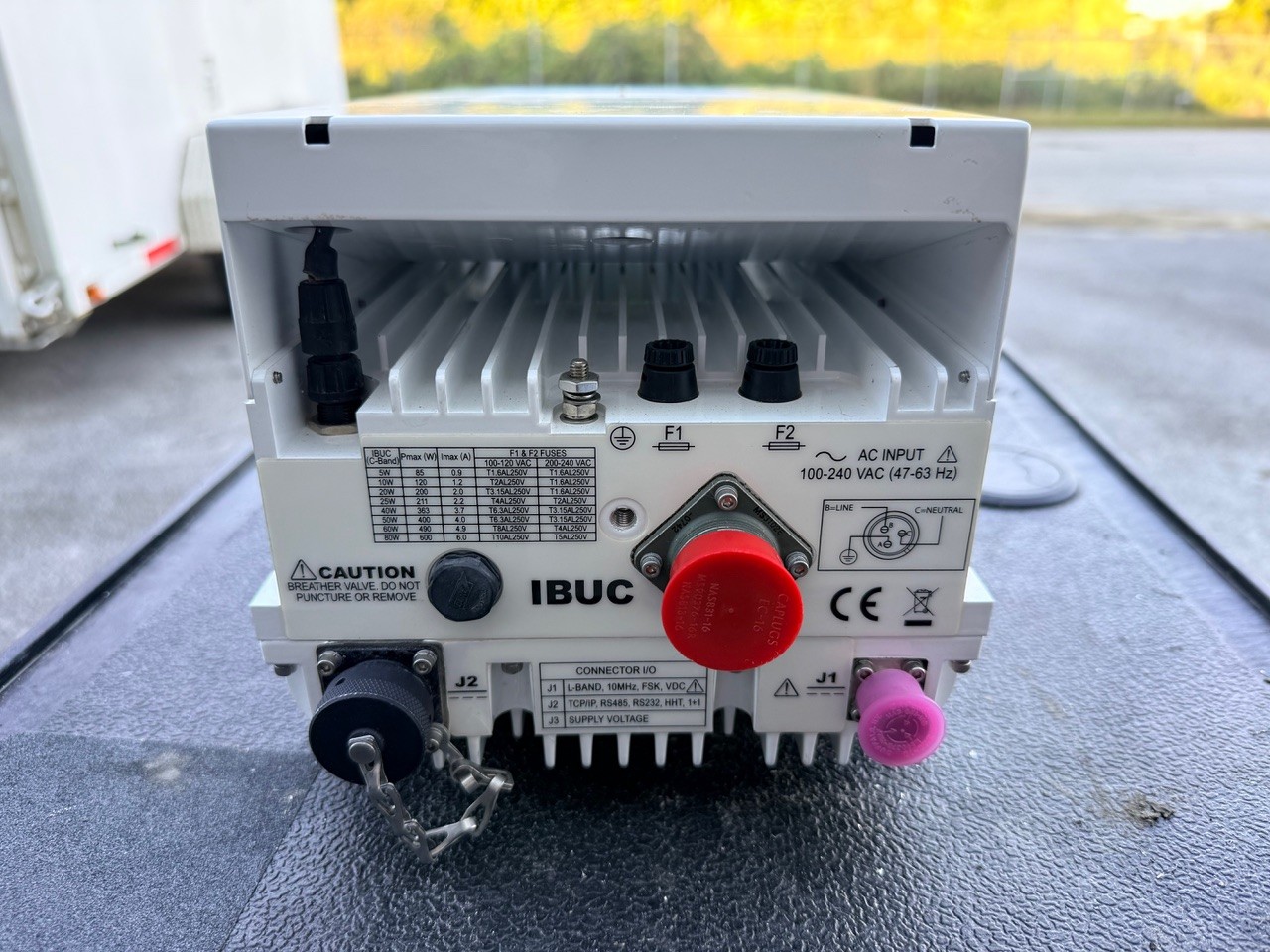

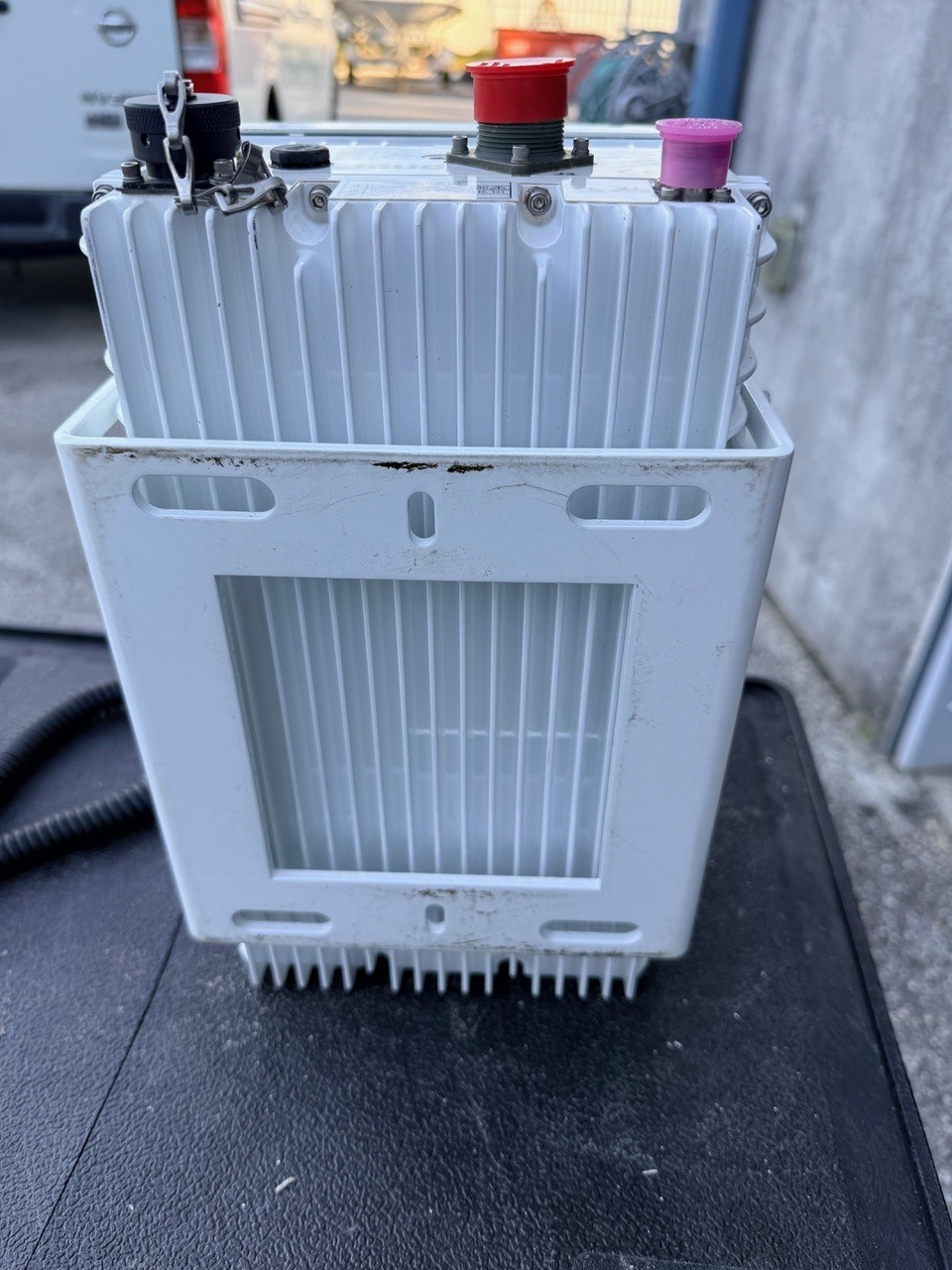

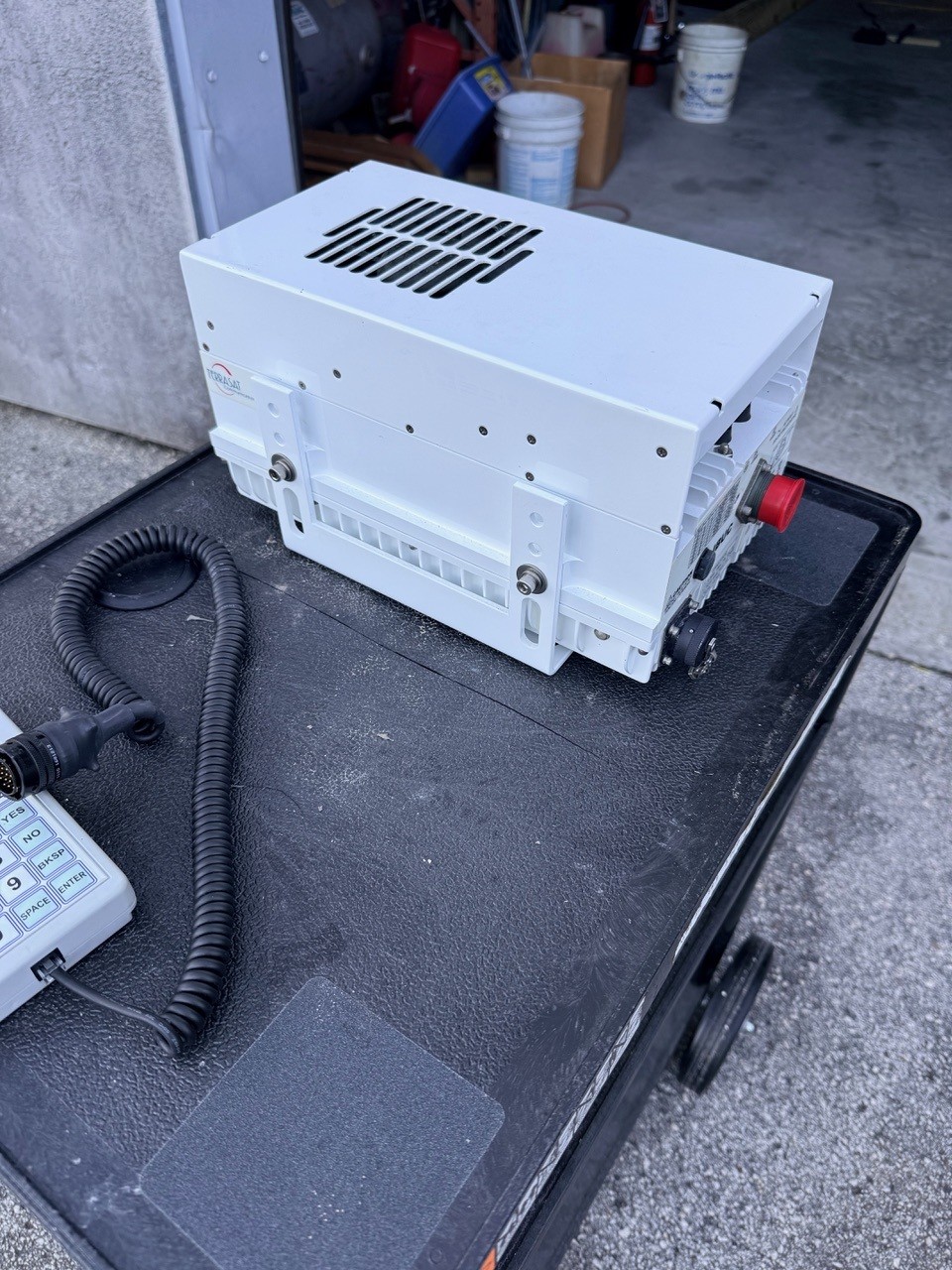

This is an unused Terrasat 40W Extended C-Band IBUC, model IBR058067-1ACO40-003, designed for high-performance satellite communication applications. Ideal for teleport, maritime, broadcast, and VSAT network operators requiring reliable extended C-band uplink power.

✅ Condition: Unused
✅ Frequency Range: 5.850 – 6.725 GHz (Extended C-Band)
✅ Power Output: 40-Watt GaAs

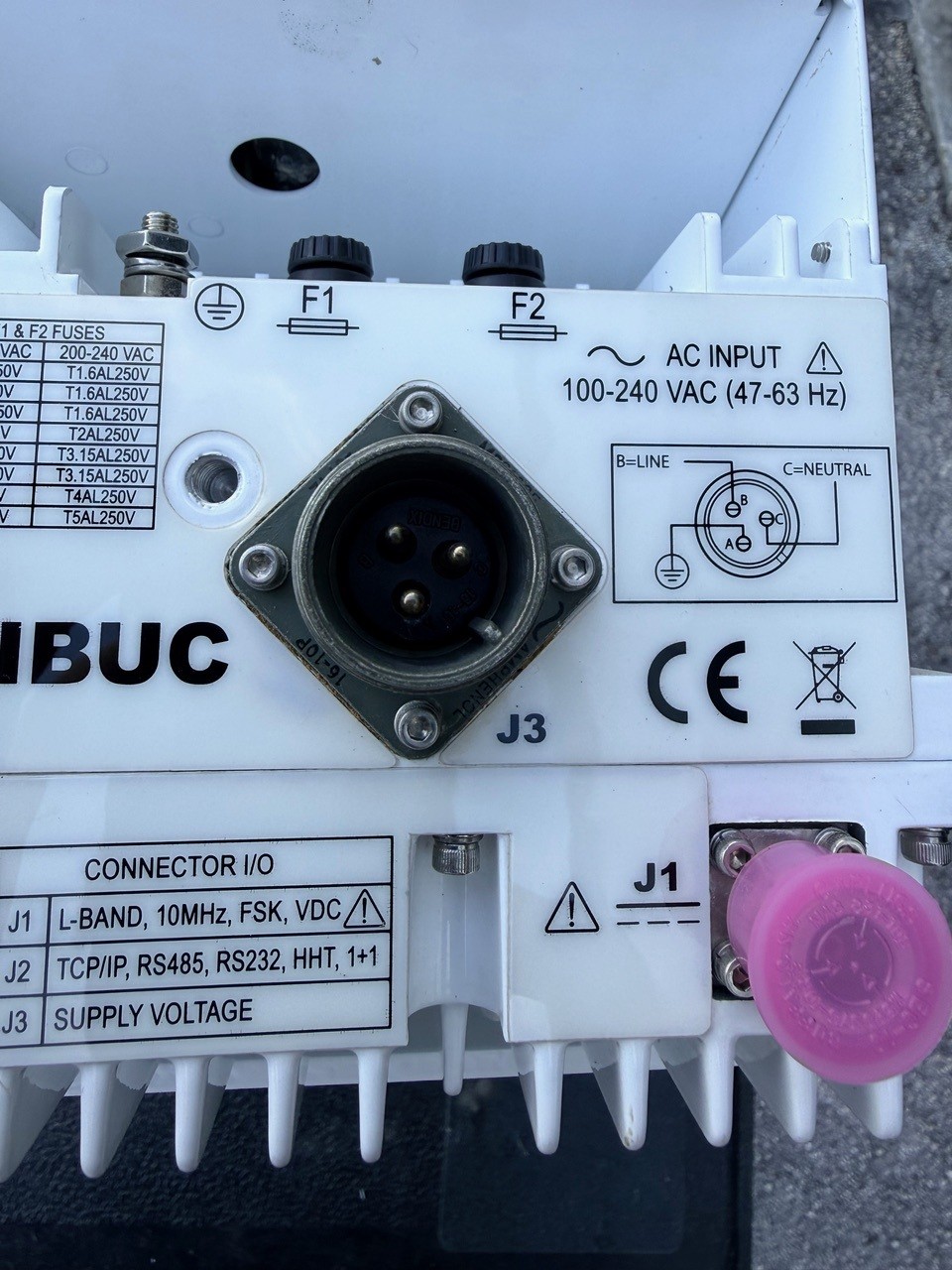

✅ Input: N-Type IF Connector
✅ Operating Voltage: AC Input

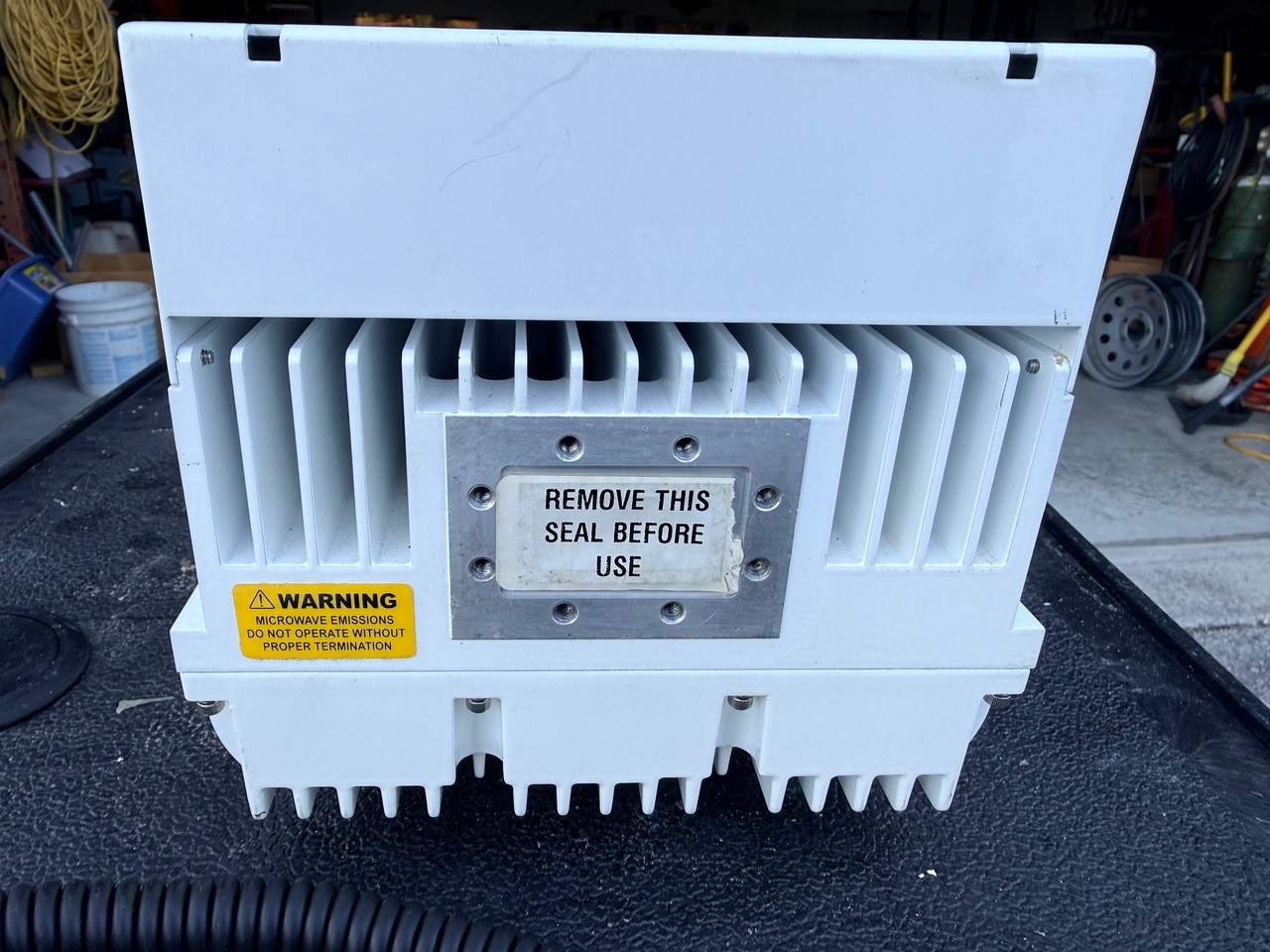

✅ Output: Waveguide Interface
✅ Color: White

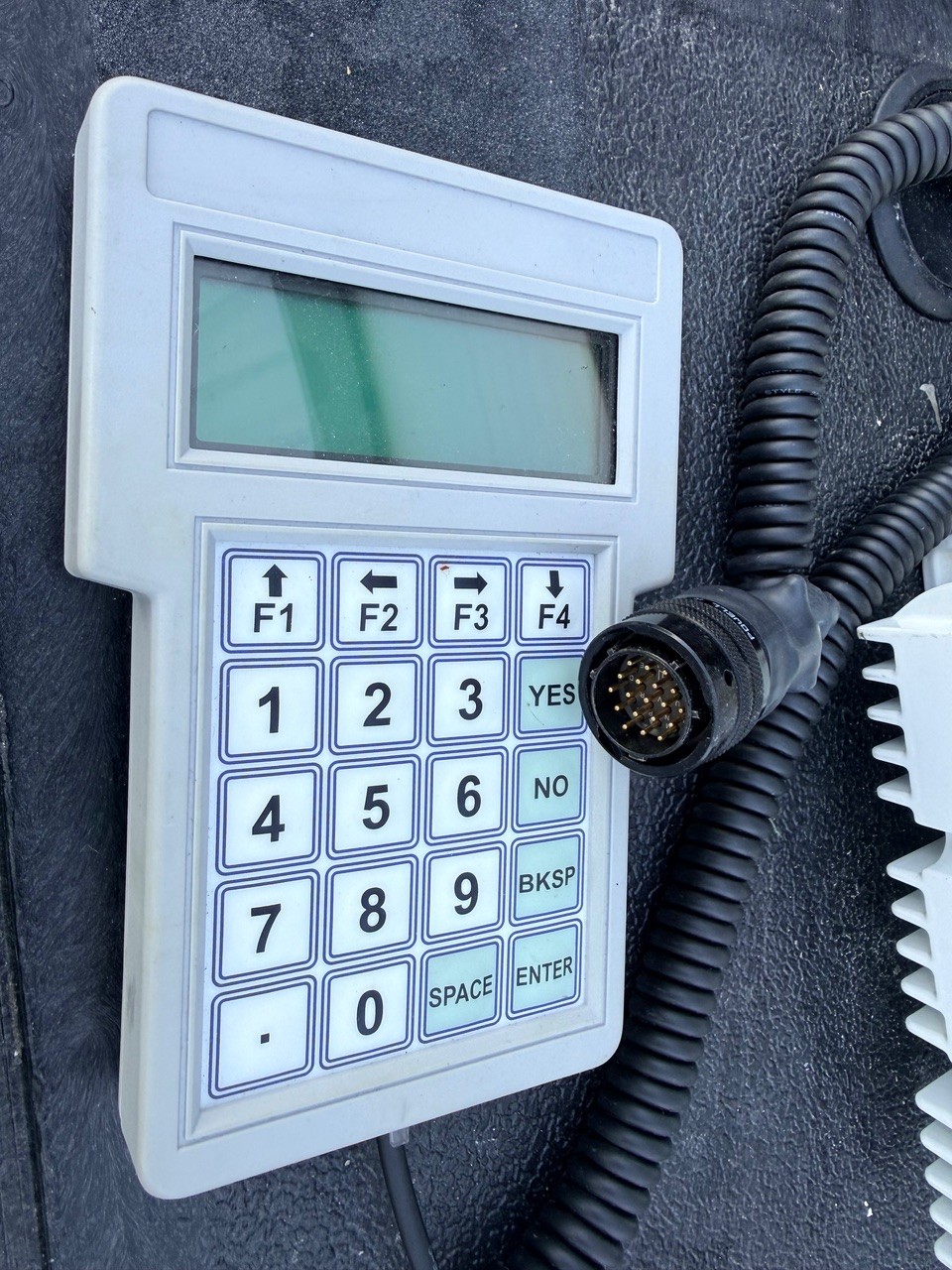

✅ Included: Mounting Kit + Terrasat Handheld Controller
✅ Not Included: I cannot find the power cord

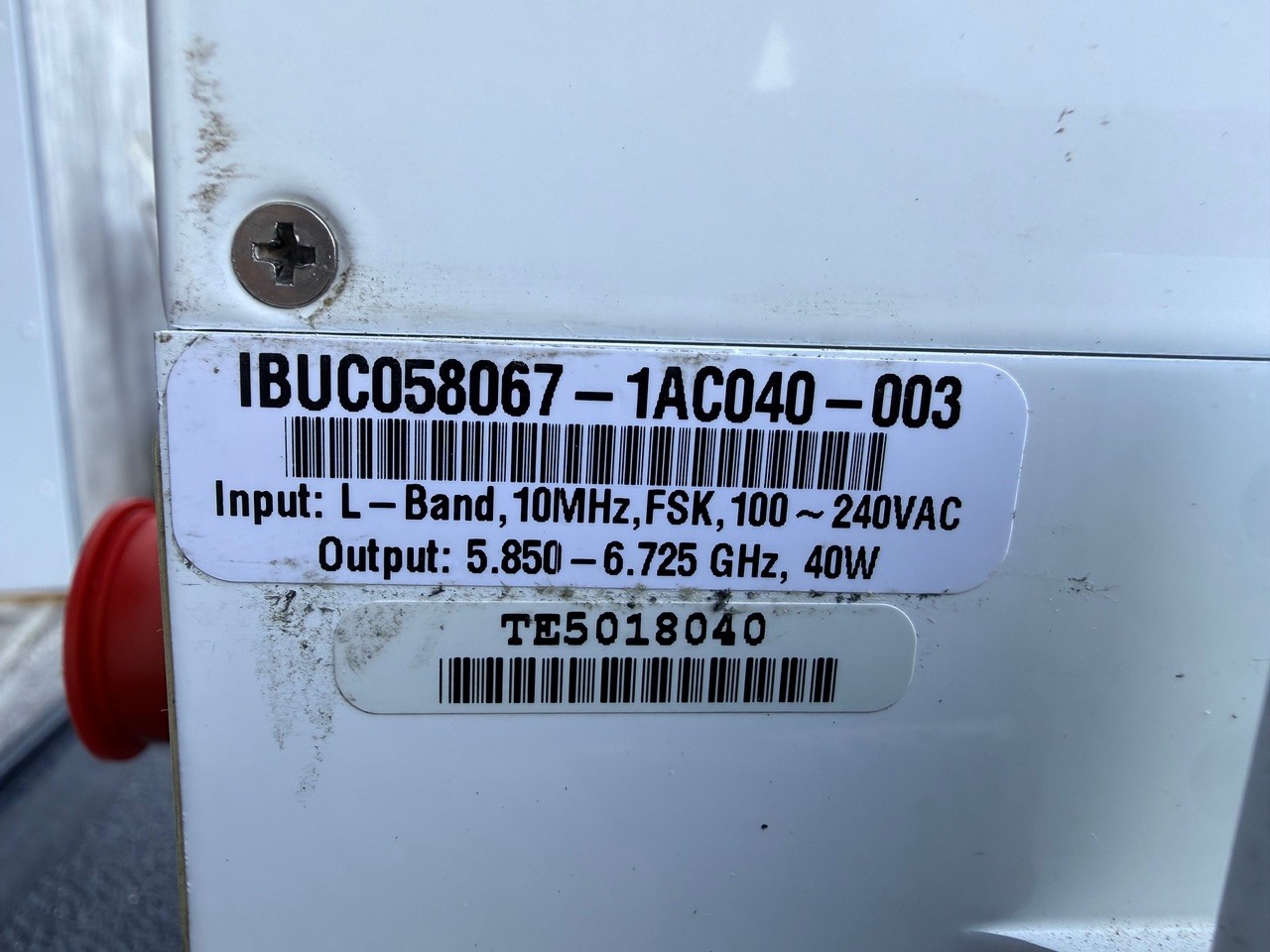

Part Number Breakdown

• 058067 – Extended C-Band

• 3 – Non-Inverting / Internal 10 MHz Reference

• N – N-Type IF Input Connector

• A – AC Power Input

• 040 – 40-Watt GaAs

• W – Waveguide Output / White Finish
